• Year
  • 1952 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 260644

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 463 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

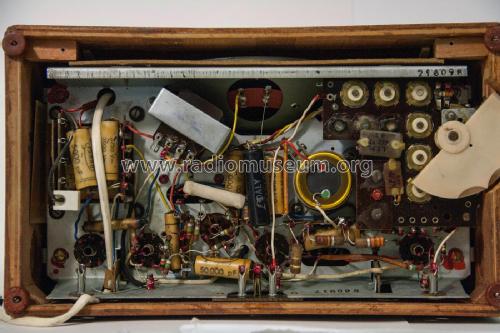

  • Model: 210V - Stella Radio AB; Stockholm
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 300 x 210 x 180 mm / 11.8 x 8.3 x 7.1 inch
  • Author
  • Model page created by Sami Pasuri. See "Data change" for further contributors.
