Transistor-Tuner STT 101 974402

Transistor-Tuner STT 101 974402; Stereotronic; (ID = 2388402) Radio Transistor-Tuner STT 101 974402; Stereotronic; (ID = 2388403) Radio
Transistor-Tuner STT 101 974402; Stereotronic; (ID = 2388404) Radio Transistor-Tuner STT 101 974402; Stereotronic; (ID = 2388405) Radio
Transistor-Tuner STT 101 974402; Stereotronic; (ID = 2388406) Radio Transistor-Tuner STT 101 974402; Stereotronic; (ID = 443236) Radio
Use red slider bar for more.
Transistor-Tuner STT 101 974402; Stereotronic; (ID = 2388402) Radio
Stereotronic;: Transistor-Tuner STT 101 974402 [Radio] ID = 2388402 1400x494
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor-Tuner STT 101 974402, Stereotronic; Pforzheim:
ebay.de, hermann_stegmaier, #132994682932

Country:  Germany
Manufacturer / Brand:  Stereotronic; Pforzheim
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes B30C400
Semiconductors (the count is only for transistors) 17: GM760 GM760 AF124 AF124 AF124 AF124 AF124 TI414 TI414 TI414 TI414 AC126 or. AC122 AC126 or. AC122 AC126 AC126 AC126 AC128 BA102 AA119 AA112 SFD115 or. 1N542 SFD104

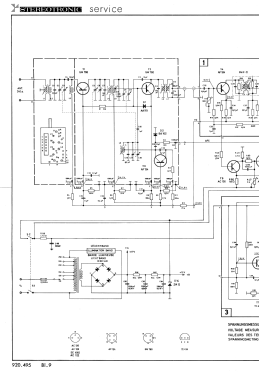

schematic requested
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 14 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Transistor-Tuner STT 101 974402 - Stereotronic; Pforzheim
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 385 x 130 x 285 mm / 15.2 x 5.1 x 11.2 inch
Notes

HiFi-Stereo-Tuner, 87,5 - 108 MHz. AFC, Instrument zur Mittenabstimmung.

Bestehend u.a. aus den Görler-Baugruppen

Jeder Diodentyp nur einmal gelistet.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
External source of data erb
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb
Mentioned in High Fidelity Jahrbuch 1967/68
