For model Airborne Spark W/T Transmitter 1, Sterling Telephone & El. Co. Ltd.:
Ebay auction by user john081943 170651049635

Country:  Great Britain (UK)
Manufacturer / Brand:  Sterling Telephone & El. Co. Ltd.
Year: 1916 Category: Military Equipment
Main principle Transmitter
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Airborne Spark W/T Transmitter 1 - Sterling Telephone & El. Co.
Material Wooden case
Shape Chassis only or for «building in»
Notes

Sterling Airborne Spark W/T Transmitter No 1;
For RAF, 30 - 40 W for up to 10 miles.

Powered from a 6V accumulator.

The wavelength could be set from 100 to 260 metres.

The first model produced was The Stirling Type 52 of which 1331 were produced.

113 made by Stirling at a cost of 46 pounds 13 shillings. The remainder built by the War Department Factories at only 9 pounds 9 shillings.

Improvements to this transmitter became this model and models 2 to 4, 3459 were produced.

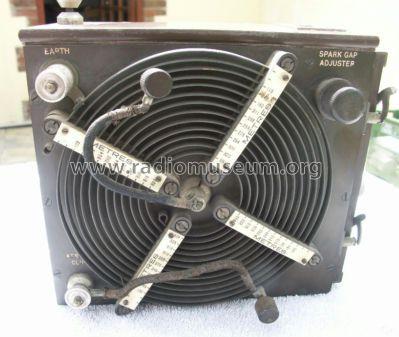

The difference between the Stirling 52 and later models was the fitting of a second coupling clip to the helix inductance.



Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 9.45 UK£
Mentioned in HRSA Radiowaves, No. 23 January 1988 & No. 139 January 2017.
