• Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 1707

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 65W [AD1] - Stern-Radio Rochlitz, VEB, RFT
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 480 x 320 x 250 mm / 18.9 x 12.6 x 9.8 inch
  • Notes

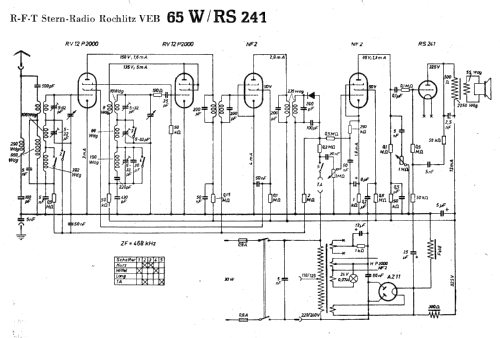

  • Sirutor als Demodulator. Auch Variante mit RS241. eventuell wurde ein Gerät mit dieser Bezeichnung auch bei Graetz / Altena gefertigt
  • Circuit diagram reference

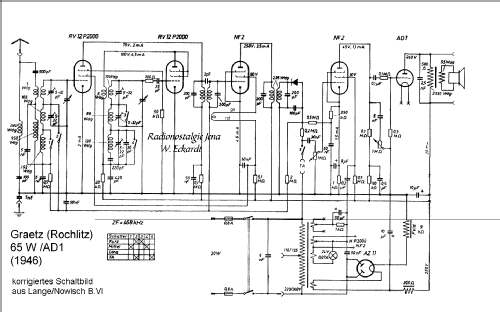

  • Lange + Schenk Heft 29 von 1947
  • Mentioned in
  • Lange-Nowisch B.VI; Funktechnik 04/48
