Wartburg 5160 A

Wartburg 5160 A; Stern-Radio (ID = 467670) Radio

Wartburg 5160 A; Stern-Radio (ID = 649995) Radio

Wartburg 5160 A; Stern-Radio (ID = 649997) Radio

Wartburg 5160 A; Stern-Radio (ID = 649998) Radio

Wartburg 5160 A; Stern-Radio (ID = 649993) Radio

Wartburg 5160 A; Stern-Radio (ID = 649994) Radio

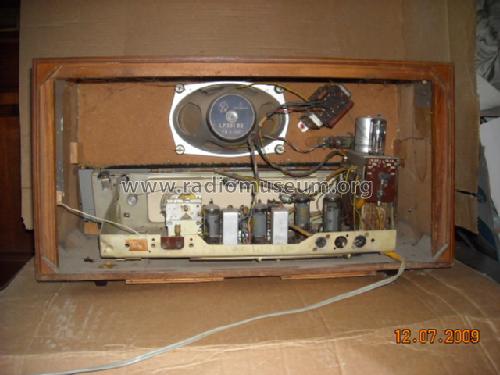

Wartburg 5160 A; Stern-Radio (ID = 640116) Radio Wartburg 5160 A; Stern-Radio (ID = 640118) Radio

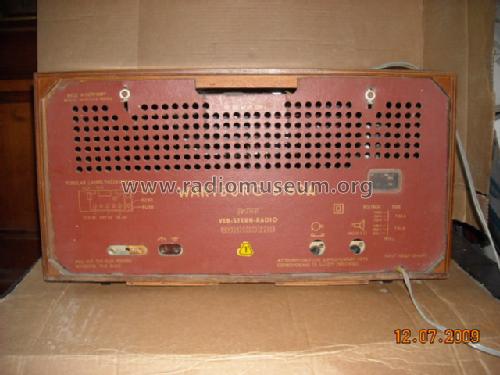

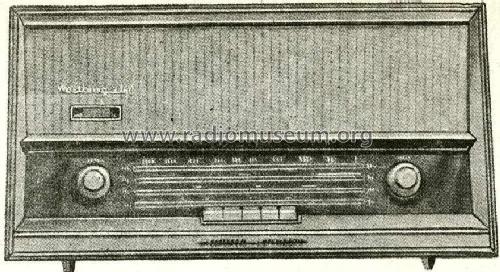

Wartburg 5160 A; Stern-Radio (ID = 640117) Radio Wartburg 5160 A; Stern-Radio (ID = 510553) Radio

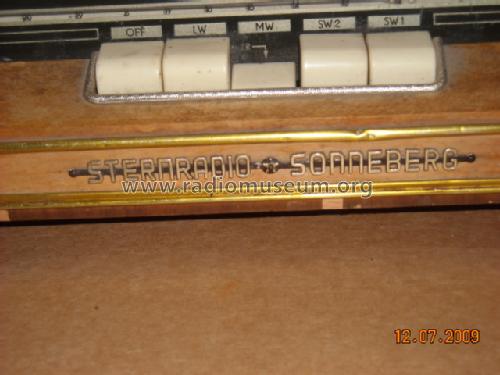

Wartburg 5160 A; Stern-Radio (ID = 640119) Radio Wartburg 5160 A; Stern-Radio (ID = 640120) Radio

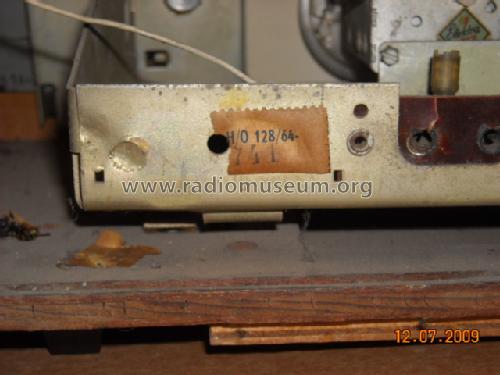

Wartburg 5160 A; Stern-Radio (ID = 640121) Radio
Use red slider bar for more.

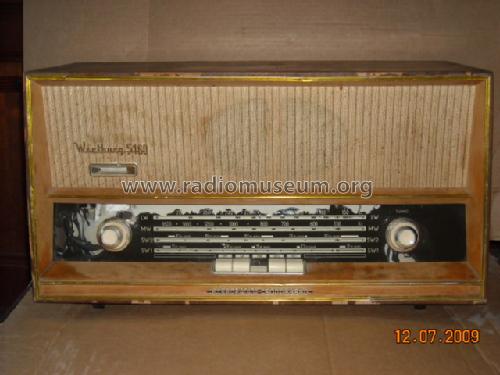

Wartburg 5160 A; Stern-Radio (ID = 640116) Radio
Stern-Radio: Wartburg 5160 A [Radio] ID = 640116 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wartburg 5160 A, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF89 EBF89 EL84 EM84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 180; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.7 W (unknown quality)
from Radiomuseum.org Model: Wartburg 5160 A - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 280 x 220 mm / 20.5 x 11 x 8.7 inch

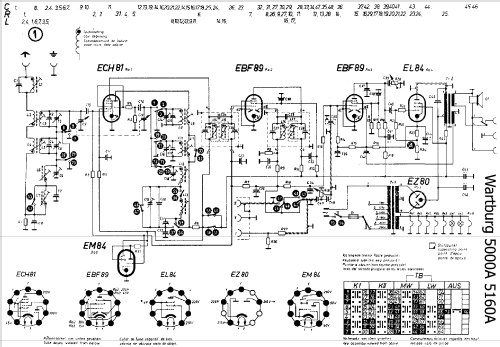

Notes Der Exportsuper Wartburg 5160A ist eine Gehäusevariante des Wartburg 5000A. Für beide Geräte gilt der gleiche Stromlaufplan. KW 1 von 9,0 bis 22 MHz, KW 2 von 3,15 bis 7,4 MHz.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967
Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
