Carat IR SR2100

Carat IR SR2100; Stern-Radio (ID = 802029) Radio

Carat IR SR2100; Stern-Radio (ID = 802031) Radio

Carat IR SR2100; Stern-Radio (ID = 802032) Radio

Carat IR SR2100; Stern-Radio (ID = 802033) Radio

Carat IR SR2100; Stern-Radio (ID = 802314) Radio

Carat IR SR2100; Stern-Radio (ID = 802315) Radio

Carat IR SR2100; Stern-Radio (ID = 802316) Radio

Carat IR SR2100; Stern-Radio (ID = 802317) Radio

Carat IR SR2100; Stern-Radio (ID = 802318) Radio

Carat IR SR2100; Stern-Radio (ID = 802319) Radio
Carat IR SR2100; Stern-Radio (ID = 951848) Radio
Use red slider bar for more.
Carat IR SR2100; Stern-Radio (ID = 951848) Radio
Stern-Radio: Carat IR SR2100 [Radio] ID = 951848 529x349

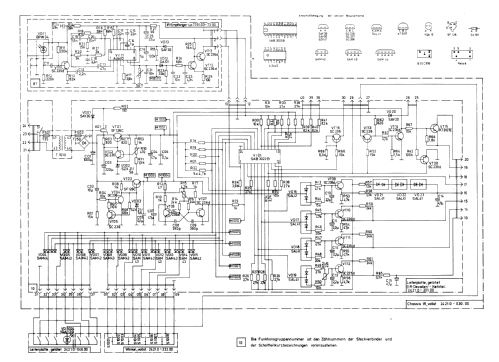

Select picture or schematic to display from thumbnails on the right and click for download.
For model Carat IR SR2100, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG:
(DDR) Funkamateur FA 12/1981 S.586 Neuvorstellung zur Leipziger Herbstmesse 1981

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 55:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 3 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Carat IR SR2100 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 720 x 108 x 360 mm / 28.3 x 4.3 x 14.2 inch
Notes Weiterentwicklung des Steuergerätes Carat S, jetzt mit einer Fernbedienung steuerbar. Modular aufgebaut, 7 Senderspeicher, ein Speicherplatz für die Hauptabstimmung. 13 Schaltkreise, 82 Dioden, je ein Keramikfilter für AM und für FM, Ausgangsleistung 2x 15 Watt.
Price in first year of sale 2'350.00 DM
Source of data - - Data from my own collection
Mentioned in Die Geschichte der Rundfunkindustrie der DDR, 1968 - 1990

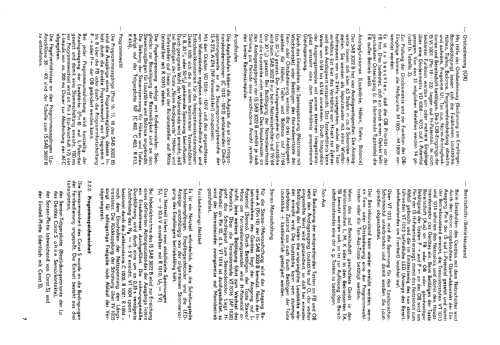

Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein.
Literature/Schematics (2) (DDR) Funkamateur FA 12/1981 S.586 Neuvorstellung zur Leipziger Herbstmesse 1981

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
