Stern-Radio: Charmant 632 [Radio] ID = 384461 606x253
Select picture or schematic to display from thumbnails on the right and click for download.
For model Charmant 632, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: GF132 GF181 GF130 GC117 GC116 GD160 SAY15 GA101 GA109 Selen
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Charmant 632 - Stern-Radio Sonneberg, VEB,
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 455 x 110 x 140 mm / 17.9 x 4.3 x 5.5 inch
Notes

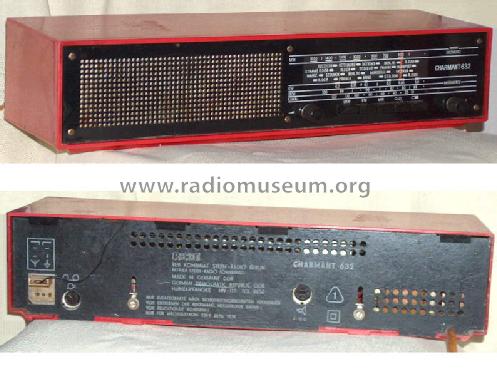

Charmant 632 ist Nachfolgemodell des Brillant 6310. Kunststoffgehäuse (Skonater) in Blau, Rot oder Weiß. KW nur 49-m-Band, Ferritantenne für MW und KW, Klangtaste. Lautsprecher 8 Ω.

Halbleiter einmal je Typ gelistet.

Exportausführung mit UKW bis 108 MHz = Bruns Charmant 633.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 320.00 DM
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990

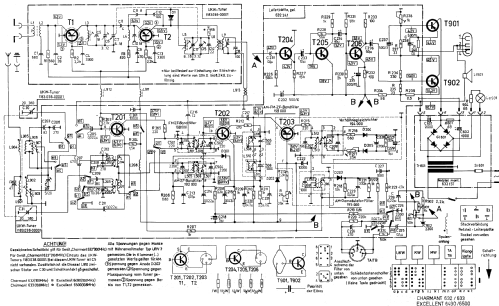

Literature/Schematics (1) -- Original prospect or advert (Service- DVD vom Funkverlag B. Hein)

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
