Ilmenau Super 66/55W

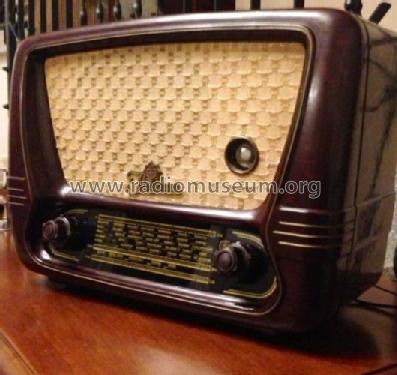

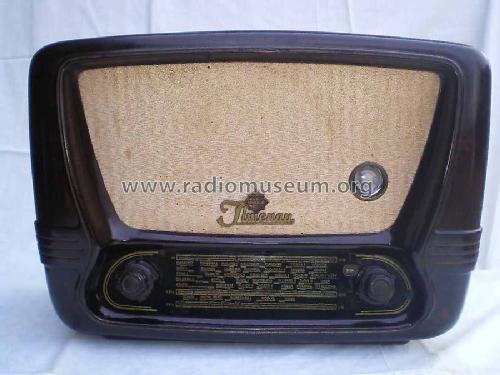

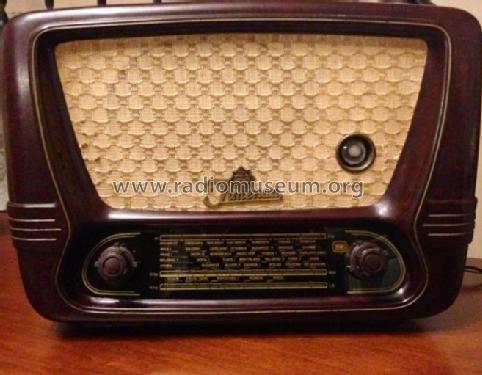

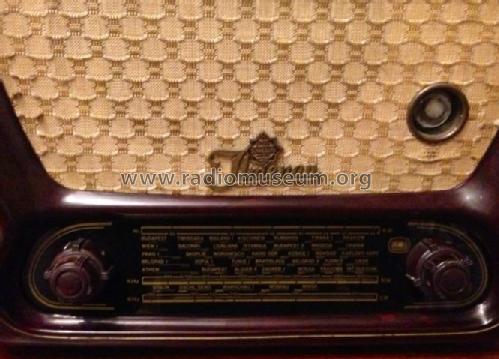

Ilmenau Super 66/55W; Stern-Radio (ID = 803985) Radio Ilmenau Super 66/55W; Stern-Radio (ID = 1338682) Radio
Ilmenau Super 66/55W; Stern-Radio (ID = 1338684) Radio Ilmenau Super 66/55W; Stern-Radio (ID = 1338685) Radio
Ilmenau Super 66/55W; Stern-Radio (ID = 1411762) Radio Ilmenau Super 66/55W; Stern-Radio (ID = 1411764) Radio
Ilmenau Super 66/55W; Stern-Radio (ID = 1411765) Radio Ilmenau Super 66/55W; Stern-Radio (ID = 1411768) Radio
Ilmenau Super 66/55W; Stern-Radio (ID = 1411769) Radio Ilmenau Super 66/55W; Stern-Radio (ID = 1411770) Radio
Use red slider bar for more.
Ilmenau Super 66/55W; Stern-Radio (ID = 803985) Radio
Stern-Radio: Ilmenau Super 66/55W [Radio] ID = 803985 909x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ilmenau Super 66/55W, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBF80 EL84 EM11 EZ80
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Ilmenau Super 66/55W - Stern-Radio Sonneberg, VEB,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 410 x 290 x 180 mm / 16.1 x 11.4 x 7.1 inch
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Roman Kupperman. See "Data change" for further contributors.
