Mira 5660

Mira 5660; Stern-Radio (ID = 1185094) Radio

Mira 5660; Stern-Radio (ID = 1185087) Radio

Mira 5660; Stern-Radio (ID = 1185088) Radio

Mira 5660; Stern-Radio (ID = 1185089) Radio

Mira 5660; Stern-Radio (ID = 1185090) Radio

Mira 5660; Stern-Radio (ID = 1185091) Radio

Mira 5660; Stern-Radio (ID = 1185086) Radio

Mira 5660; Stern-Radio (ID = 1185093) Radio
Mira 5660; Stern-Radio (ID = 1179010) Radio Mira 5660; Stern-Radio (ID = 1179011) Radio
Use red slider bar for more.
Mira 5660; Stern-Radio (ID = 1179010) Radio
Stern-Radio: Mira 5660 [Radio] ID = 1179010 933x498
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mira 5660, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG:

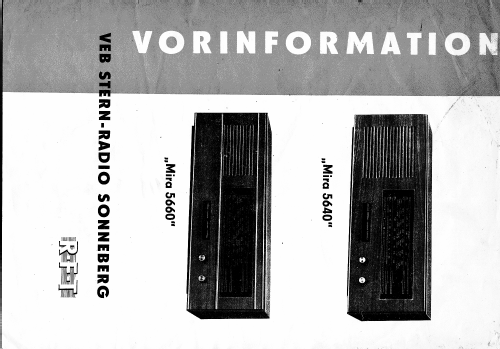

Original-Prospect (Vorinformation Mira 5640 und 5660, VEB Stern-Radio Sonneberg)

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCC85 UCH81 UBF89 UCL82 UY82
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Mira 5660 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 425 x 155 x 166 mm / 16.7 x 6.1 x 6.5 inch
Notes Der Mira 5660 und Mira 5640 unterscheiden sich in der Ausführung des Holzgehäuses. Das Gehäuse des Mira 5660 hat vier Zierleisten. Der Mira 5640 hat nur zwei Zierleisten. Der Empfangsbereich auf UKW umfaßt 87,5 ... 100 MHz, Kurzwelle nur 49m-Band. Variometerabstimmung.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Collectors' prices
Mentioned in -- Original prospect or advert (Vorinformation Mira 5640 und 5660, VEB Stern-Radio Sonneberg)

Model page created by Dirk Okoniewski. See "Data change" for further contributors.
