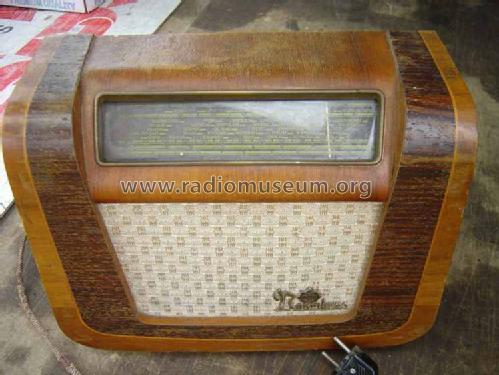

Naumburg 875/55GWU Holzgehäuse

Naumburg 875/55GWU; Stern-Radio (ID = 829056) Radio

Naumburg 875/55GWU; Stern-Radio (ID = 829058) Radio

Naumburg 875/55GWU; Stern-Radio (ID = 2204037) Radio
Naumburg 875/55GWU; Stern-Radio (ID = 309429) Radio Naumburg 875/55GWU; Stern-Radio (ID = 1611625) Radio
Naumburg 875/55GWU; Stern-Radio (ID = 114534) Radio Naumburg 875/55GWU; Stern-Radio (ID = 114535) Radio
Naumburg 875/55GWU; Stern-Radio (ID = 200979) Radio Naumburg 875/55GWU; Stern-Radio (ID = 309428) Radio
Naumburg 875/55GWU; Stern-Radio (ID = 309430) Radio Naumburg 875/55GWU; Stern-Radio (ID = 630534) Radio
Naumburg 875/55GWU; Stern-Radio (ID = 630535) Radio Naumburg 875/55GWU; Stern-Radio (ID = 630536) Radio
Use red slider bar for more.
Naumburg 875/55GWU; Stern-Radio (ID = 309429) Radio
Stern-Radio: Naumburg 875/55GWU [Radio] ID = 309429 766x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Naumburg 875/55GWU Holzgehäuse, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UF85 UBF80 UEL51 Selen
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 7 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Naumburg 875/55GWU [Holzgehäuse] - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Weiterentwicklung des "Schwarzburg", auch in Bakelit-Gehäuse.
Price in first year of sale 306.00 Mark
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
