Orienta 5610

Orienta 5610; Stern-Radio (ID = 1420885) Radio Orienta 5610; Stern-Radio (ID = 1420886) Radio
Orienta 5610; Stern-Radio (ID = 1420887) Radio Orienta 5610; Stern-Radio (ID = 1420888) Radio
Use red slider bar for more.
Orienta 5610; Stern-Radio (ID = 1420885) Radio
Stern-Radio: Orienta 5610 [Radio] ID = 1420885 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orienta 5610, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF89 ECL86 EM84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Orienta 5610 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 485 x 175 x 170 mm / 19.1 x 6.9 x 6.7 inch
Notes Kleinsuper für den Export. Langwelle von 145 bis 290 kHz, Mittelwelle von 510 bis 1620 kHz, Kurzwelle 1 von 9 bis 22 MHz und KW2 von 3,15 bis 7,4 MHz. Klangregler, Diodenbuchse. Ferritantenne für MW und LW.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Source of data -- Original-techn. papers.

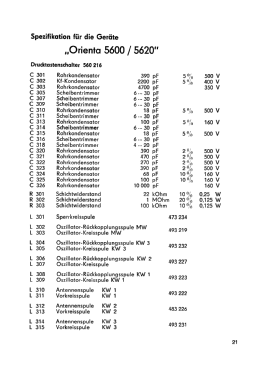

Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
