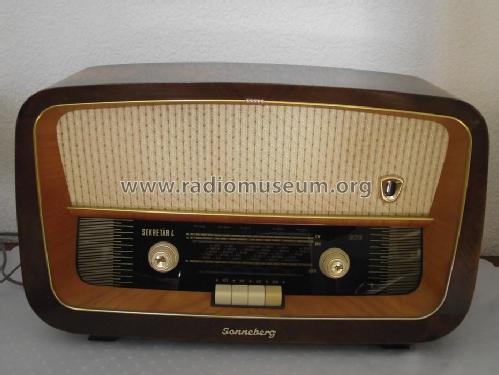

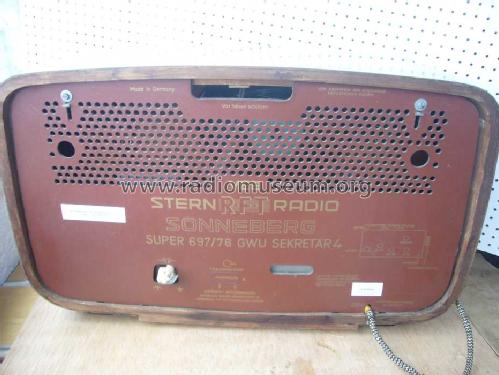

Sonneberg Sekretär 4 697/76GWU

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70864

• Picture
• Schematics

Previous Next

Previous Next

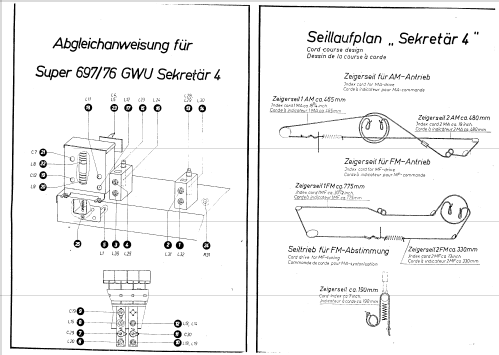

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UBF89 UABC80 UM80 UL84

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sonneberg Sekretär 4 697/76GWU - Stern-Radio Sonneberg, VEB,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 545 x 335 x 195 mm / 21.5 x 13.2 x 7.7 inch

• Notes

• Holzgehäuse auch in schwarz (Klavierlack).

  Parallelgerät mit Pressstoffgehäuse: Sonra Sekretär 4 697/77GWU
  Die Chassis sind identisch.

• Price in first year of sale
• 365.00 DM

• External source of data
• Andreas Reuther

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
