Intimo 5410

Intimo 5410; Stern-Radio (ID = 105094) Radio

Intimo 5410; Stern-Radio (ID = 1282508) Radio
Intimo 5410; Stern-Radio (ID = 492485) Radio Intimo 5410; Stern-Radio (ID = 492486) Radio
Intimo 5410; Stern-Radio (ID = 1068590) Radio Intimo 5410; Stern-Radio (ID = 1068591) Radio
Intimo 5410; Stern-Radio (ID = 1068592) Radio Intimo 5410; Stern-Radio (ID = 1068593) Radio
Intimo 5410; Stern-Radio (ID = 1289550) Radio Intimo 5410; Stern-Radio (ID = 1367397) Radio
Intimo 5410; Stern-Radio (ID = 1367398) Radio Intimo 5410; Stern-Radio (ID = 1367399) Radio
Use red slider bar for more.
Intimo 5410; Stern-Radio (ID = 492485) Radio
Stern-Radio: Intimo 5410 [Radio] ID = 492485 900x473

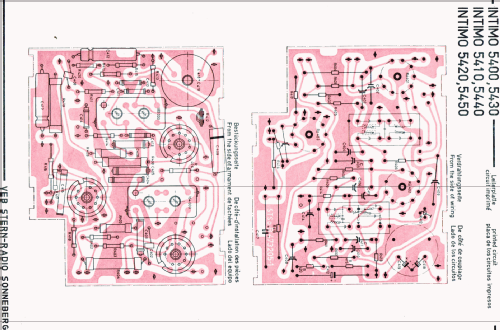

Select picture or schematic to display from thumbnails on the right and click for download.
For model Intimo 5410, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL82 EM84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Intimo 5410 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Dimensions (WHD) 485 x 175 x 170 mm / 19.1 x 6.9 x 6.7 inch
Notes

Wie Intimo 5440 aber anderes Gehäuse.
UKW 87,5 - 104 MHz.

Komplette Unterlagen bei Modell Intimo 5430.

Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein
Literature/Schematics (2) -- Original-techn. papers.
