Sonneberg 5010A
Use red slider bar for more.

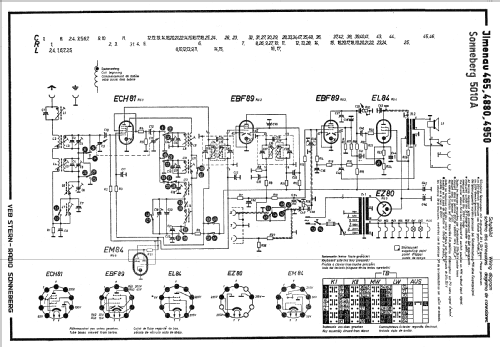

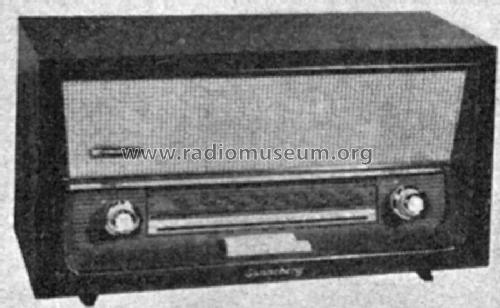

Stern-Radio: Sonneberg 5010A [Radio] ID = 1267125 900x555
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
Year:
1961/1962
|
Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECH81 EBF89 EBF89 EL84 EM84 EZ80 |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 150; 180; 200; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 2 W (unknown quality) |
| from Radiomuseum.org | Model: Sonneberg 5010A - Stern-Radio Sonneberg, VEB, |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 520 x 280 x 220 mm / 20.5 x 11 x 8.7 inch |
| Notes | 5 Tasten; gedr. Schaltung . Chassis entspricht "Ilmenau 4950", Gehäuse Edelholzfurnier poliert. |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |
| Mentioned in | -- Original-techn. papers. |
