SV 3935

SV 3935; Stern-Radio (ID = 1526521) Ampl/Mixer

SV 3935; Stern-Radio (ID = 1526522) Ampl/Mixer

SV 3935; Stern-Radio (ID = 1526523) Ampl/Mixer

SV 3935; Stern-Radio (ID = 1526524) Ampl/Mixer
SV 3935; Stern-Radio (ID = 2053078) Ampl/Mixer SV 3935; Stern-Radio (ID = 2053079) Ampl/Mixer
SV 3935; Stern-Radio (ID = 103689) Ampl/Mixer SV 3935; Stern-Radio (ID = 241171) Ampl/Mixer
Use red slider bar for more.
SV 3935; Stern-Radio (ID = 2053078) Ampl/Mixer

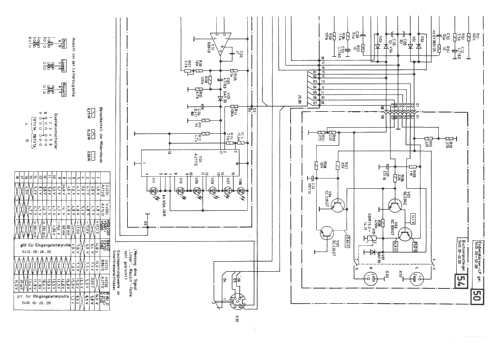

Stern-Radio: SV 3935 [Ampl/Mixer] ID = 2053078 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV 3935, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1987 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 13: SC239 SC239 SC239 SC239 SC236 SC308 SC236 SC308 SC236 SC236 SD335 SC236 SC236 B861D B861D A273D A274D TDA2020 TDA2020 B861D A277D
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 26 W (undistorted)
from Radiomuseum.org Model: SV 3935 - Stern-Radio Sonneberg, VEB,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 390 x 60 x 260 mm / 15.4 x 2.4 x 10.2 inch
Notes Hi-Fi-Stereo-Vollverstärker; Ausgangsleistung: 2× 13 VA; Frequenzgang: 20 Hz bis 20 kHz.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 760.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Service-DVD Funkverlag B. Hein

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
