Varina 5460

Varina 5460; Stern-Radio (ID = 208736) Radio
Varina 5460; Stern-Radio (ID = 208626) Radio Varina 5460; Stern-Radio (ID = 208627) Radio
Varina 5460; Stern-Radio (ID = 208628) Radio Varina 5460; Stern-Radio (ID = 267739) Radio
Varina 5460; Stern-Radio (ID = 267740) Radio Varina 5460; Stern-Radio (ID = 267741) Radio
Varina 5460; Stern-Radio (ID = 271279) Radio Varina 5460; Stern-Radio (ID = 303794) Radio
Varina 5460; Stern-Radio (ID = 303795) Radio Varina 5460; Stern-Radio (ID = 303796) Radio
Use red slider bar for more.

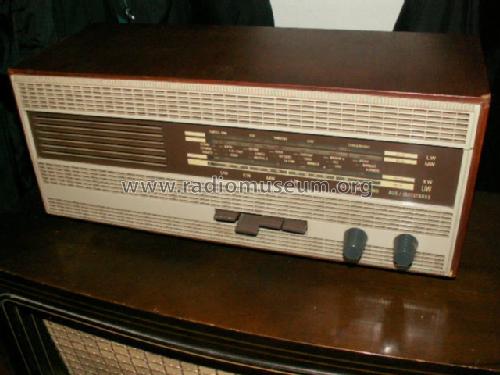

Varina 5460; Stern-Radio (ID = 208626) Radio
Stern-Radio: Varina 5460 [Radio] ID = 208626 900x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model Varina 5460, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCC85 UCH81 UBF89 UCL82 UY82
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Varina 5460 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 400 x 170 x 155 mm / 15.7 x 6.7 x 6.1 inch
Notes Der Empfänger Varina 5460 ist ein Kleinsuper, hergestellt unter Verwendung standardisierter Baugruppen für Klein- und Mittelsuper des unteren Preissegmentes.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 295.00 DM
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein.
Documents about this model
  Serviceanleitung 5130 KB

Model page created by Uwe Rössler. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Here you find 379 models, 300 with images and 277 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
