Weimar 6118/55 GWU

Weimar 6118/55 GWU; Stern-Radio (ID = 74659) Radio

Weimar 6118/55 GWU; Stern-Radio (ID = 74660) Radio

Weimar 6118/55 GWU; Stern-Radio (ID = 74661) Radio

Weimar 6118/55 GWU; Stern-Radio (ID = 173656) Radio

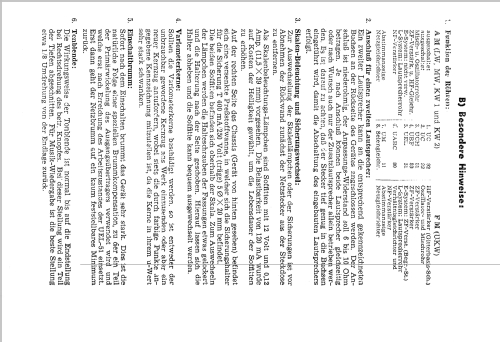

Weimar 6118/55 GWU; Stern-Radio (ID = 2334573) Radio

Weimar 6118/55 GWU; Stern-Radio (ID = 2334574) Radio

Weimar 6118/55 GWU; Stern-Radio (ID = 2334575) Radio

Weimar 6118/55 GWU; Stern-Radio (ID = 2334576) Radio

Weimar 6118/55 GWU; Stern-Radio (ID = 2334577) Radio

Weimar 6118/55 GWU; Stern-Radio (ID = 2334578) Radio
Weimar 6118/55 GWU; Stern-Radio (ID = 74640) Radio Weimar 6118/55 GWU; Stern-Radio (ID = 74641) Radio
Weimar 6118/55 GWU; Stern-Radio (ID = 204664) Radio Weimar 6118/55 GWU; Stern-Radio (ID = 204663) Radio
Weimar 6118/55 GWU; Stern-Radio (ID = 204666) Radio Weimar 6118/55 GWU; Stern-Radio (ID = 231963) Radio
Weimar 6118/55 GWU; Stern-Radio (ID = 231965) Radio Weimar 6118/55 GWU; Stern-Radio (ID = 231966) Radio
Weimar 6118/55 GWU; Stern-Radio (ID = 538179) Radio Weimar 6118/55 GWU; Stern-Radio (ID = 538181) Radio
Use red slider bar for more.
Weimar 6118/55 GWU; Stern-Radio (ID = 74640) Radio

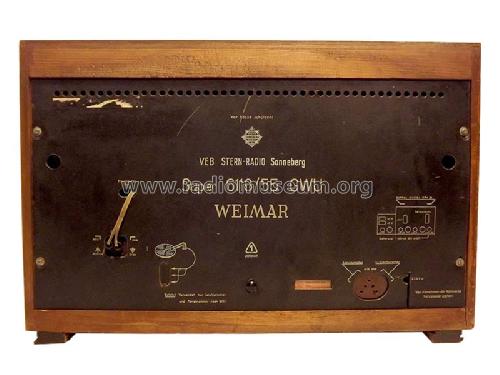

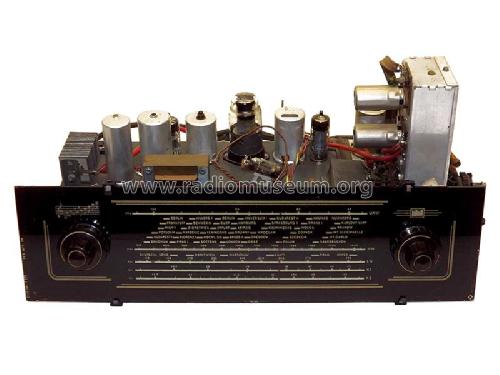

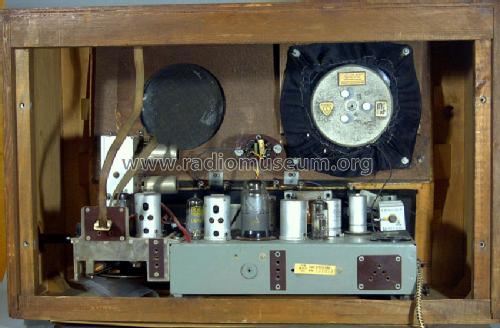

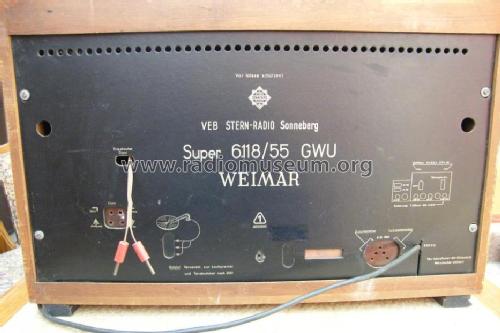

Stern-Radio: Weimar 6118/55 GWU [Radio] ID = 74640 850x657
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weimar 6118/55 GWU, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1954–1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UC92 UC92 UCH81 UBF80 UM11 UABC80 UEL51
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Weimar 6118/55 GWU - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 640 x 430 x 280 mm / 25.2 x 16.9 x 11 inch
Notes 1. Gerät der Weimar-Serie. Stereofone Schallführung durch geschlossene Rückwand und Zwischenschallwand. E-System der UEL51 als ZF-Stufe.
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 499.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 / Radiokatalog Band 2, Ernst Erb
Mentioned in Historische Radios Band IV (156B)

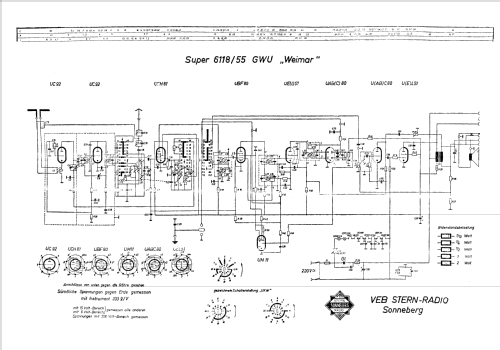

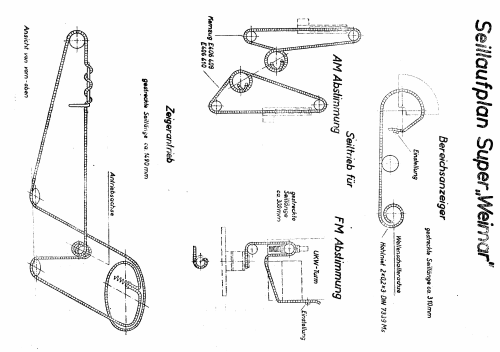

Literature/Schematics (1) -- Original-techn. papers. (Radio u. Fernsehen 10/1954, 17/1955)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Here you find 380 models, 301 with images and 278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Stern-Radio: Weimar 6118/55 GWU
Threads: 1 | Posts: 1
Hits: 1833     Replies: 0
stern-sonn: 6118/55 GWU; Weimar
Martin Schmidt2
12.Dec.06
  1

hallo,

suche ein gutes Bild von der Anschlussbelegung der Anzeigeröhre.Meine Beleuchtung wurde umgebaut und ich würde gerne diese wieder in den Originalzustand versetzen.



Gruss Martin
