• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118091

• • alternative name: Fernsehgerätewerk Staßfurt

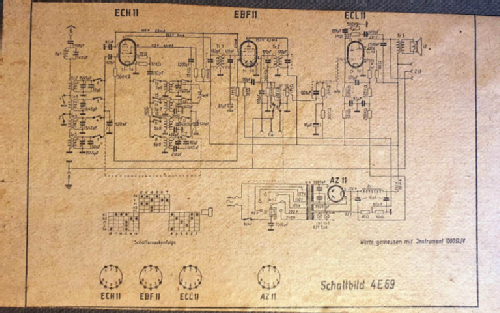

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s); Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 185; 220; 240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 17 inch = 43.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 4E69 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 322 x 232 mm / 17.7 x 12.7 x 9.1 inch

• Notes

• Exportgerät. KW1 = 6 - 17 MHz (50 - 17 m), KW2 = 2 - 6 MHz (150 - 50 m)

  KW Bandspreizung, Klangregelung, Bakelitchassis.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Mentioned in
• Service-CDHein

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.
