Aida RFT-Musikschrank 5E69

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 533307) Radio

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 2080852) Radio

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 533319) Radio

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 533320) Radio

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 2080850) Radio

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 2080851) Radio

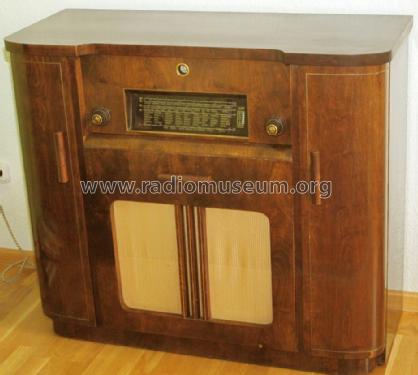

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 972218) Radio Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 972217) Radio
Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 679146) Radio Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 2080835) Radio

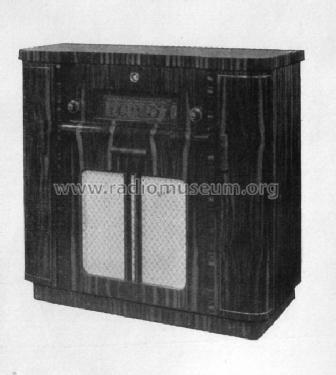

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 39015) Radio
Use red slider bar for more.

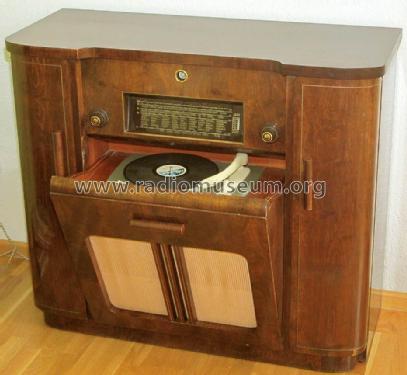

Aida RFT-Musikschrank 5E69; Stern-Radio Staßfurt (ID = 972218) Radio
Stern-Radio Staßfurt: Aida RFT-Musikschrank 5E69 [Radio] ID = 972218 933x858
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aida RFT-Musikschrank 5E69, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 EM11 AZ11
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Aida RFT-Musikschrank 5E69 - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1000 x 880 x 420 mm / 39.4 x 34.6 x 16.5 inch
Notes Musikschrank mit 4 eingebauten Plattenständern für 72 Platten
Source of data Gebrauchswaren-Katalog 1954 / Radiokatalog Band 2, Ernst Erb

Model page created by Steffen Bartusch. See "Data change" for further contributors.
