RFT-Super 5U63 UKW 2 × 3 Zierstreifen

RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 18166) Radio

RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 107246) Radio

RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 2290175) Radio

RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 2290176) Radio
RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 1593189) Radio RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 267047) Radio

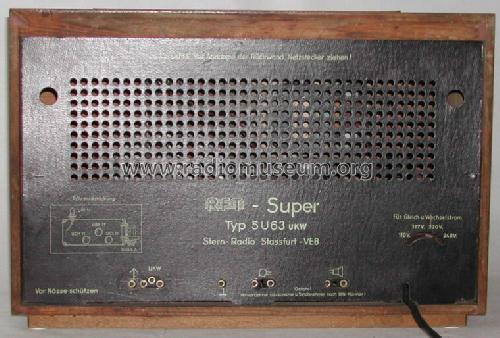

RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 23423) Radio RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 1402845) Radio

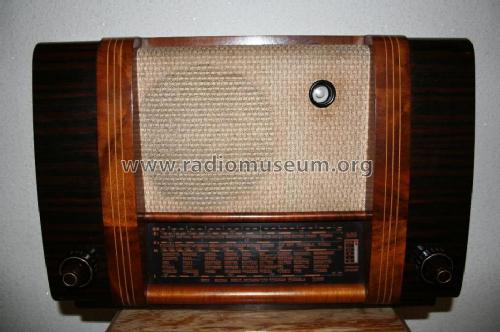

RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 2377) Radio RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 267045) Radio
RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 267048) Radio RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 936994) Radio

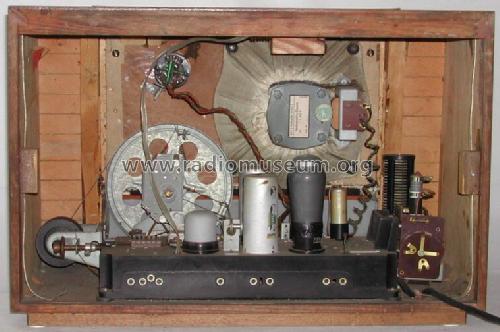

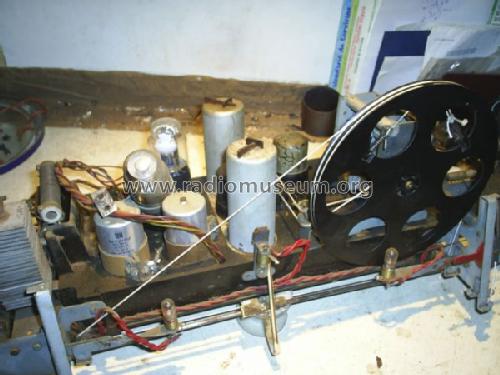

RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 1376932) Radio RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 23422) Radio
Use red slider bar for more.
RFT-Super 5U63 UKW; Stern-Radio Staßfurt (ID = 1593189) Radio
Stern-Radio Staßfurt: RFT-Super 5U63 UKW [Radio] ID = 1593189 933x709
Select picture or schematic to display from thumbnails on the right and click for download.
For model RFT-Super 5U63 UKW 2 × 3 Zierstreifen, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UM11
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: RFT-Super 5U63 UKW [2 × 3 Zierstreifen] - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 365 x 250 mm / 21.7 x 14.4 x 9.8 inch
Notes

[555309; FT5309]

Siehe auch Nachfolger Modell von 1953/54.

Net weight (2.2 lb = 1 kg) 12.2 kg / 26 lb 14 oz (26.872 lb)
Price in first year of sale 480.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Historische Radios Band IV (209B)
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.
