• Year
  • 1937 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 336358

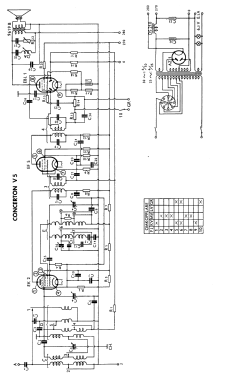

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 136 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 127; 140; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • from Radiomuseum.org
  • Model: Concerton V5 - Stern & Stern Concerton /
  • Mentioned in
  • -- Original-techn. papers. (AB Stern & Stern service data 1938)
  • Author
  • Model page created by Lars Nord. See "Data change" for further contributors.
