• Year
  • 1936 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 61936
    • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

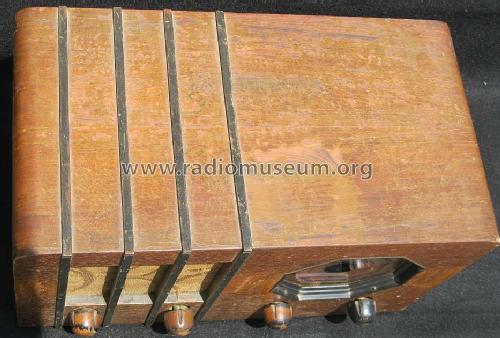

  • Model: 125 AC-DC - Stromberg-Carlson Co. ;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • BC (540-1500 kHz), TROP (1450-3500 kHz) and SW (5.6-18.0 MHz) bands.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Mentioned in
  • Rider's 7-16, 7-17, 7-18
