- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62045
-
- Brand: Te-Lek-Tor-Et

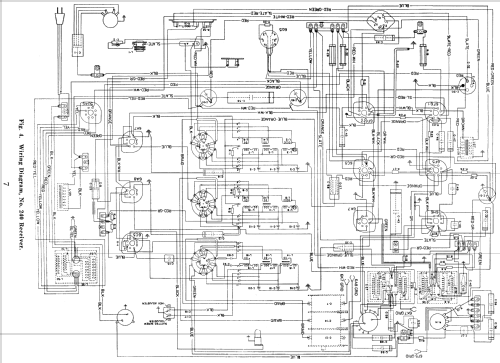

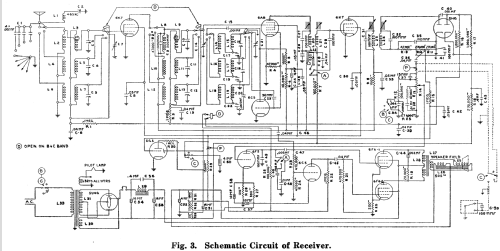

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 240-PB - Stromberg-Carlson Co. ;
- Notes
- BC (530-1700 kHz), TROP (1700-5600 kHz) and SW (5.6-18.0 MHz) bands. Tuning eye, push-pull audio amplifier. For 25 Hz AC only.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Rider's 9-19 to 9-24
