4A17 with standard valve line up.

Stromberg-Carlson (Australasia) Pty. Ltd. Sydney

  • Year
  • 1947/1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 185889

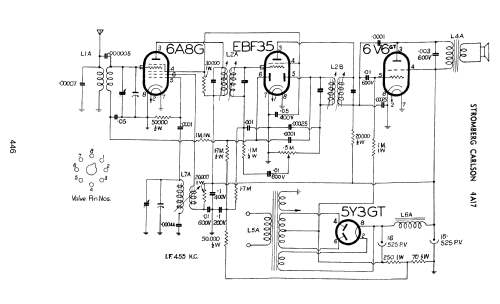

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: 4A17 [with standard valve line up.] - Stromberg-Carlson Australasia
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 304 x 178 x 153 mm / 12 x 7 x 6 inch
  • Price in first year of sale
  • 18.00 Aus£
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. VI
  • Literature/Schematics (1)
  • Mingay's Radio Diagram & I.F. Index
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
