• Year
  • 1934/1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 161969

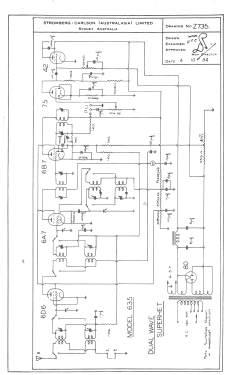

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 450 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-265 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: A.C. Dual-Wave 635 - Stromberg-Carlson Australasia
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Has tuning meter. Must not be confused with the totally different US model 635.

    A modified tone circuit was implemented from Serial # 29304 on. See schematic.

  • Price in first year of sale
  • 40.00 Aus£
  • Literature/Schematics (1)
  • Radio Trade Annual 1938 P339.
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
