• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 165406

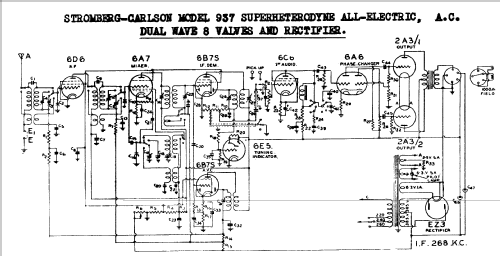

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 268 kHz; 3 AF stage(s)
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220/240/260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 937PR - Stromberg-Carlson Australasia
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Uses Acoustical Labyrinth. Same circuit as model 937.
  • Price in first year of sale
  • 71.00 Aus£
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. I
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
