• Country
• Switzerland

• Manufacturer / Brand
• Studer-Revox; Schweiz

• Year
• 1954–1956

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 75065

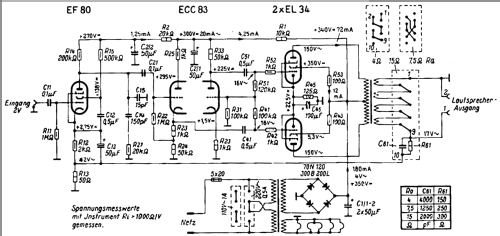

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF80 ECC83 EL34 EL34

• Main principle
• Audio-Amplification; 4 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Revox HiFi-Endverstärker 59-E - Studer-Revox; Schweiz

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 197 x 190 inch / 7620 x 5004 x 4826 mm

• Notes
• HiFi-Endverstärker, Gegentaktendstufe, zugehöriger Vorverstärker Revox 59-A. mit Selen-Gleichrichter AEG B300C500L, Frequenzbereich 20 Hz bis 20 kHz +0/-0,2 dB. Lötstrap für Lautsprecher 4/7,5/15 Ohm, Ri <5 % Ra; Eingangsempfindlichkeit 2 V an Chinch-Buchse, Anschluss für externe Signallampe 6 V.

• Net weight (2.2 lb = 1 kg)
• 11.7 kg / 25 lb 12.3 oz (25.771 lb)

• Price in first year of sale
• 465.00 SFr

• External source of data
• P. Holenstein

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Mentioned in

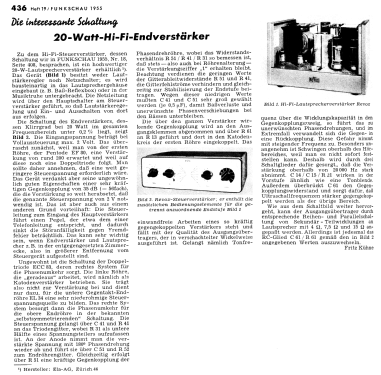

• Funkschau (Heft 19/1955, S. 436)

• Author
• Model page created by Lars Brötje. See "Data change" for further contributors.
