21 Silverstar

21 Silverstar; Superla - Cresa; (ID = 2080328) Radio 21 Silverstar; Superla - Cresa; (ID = 2080329) Radio
21 Silverstar; Superla - Cresa; (ID = 2080330) Radio 21 Silverstar; Superla - Cresa; (ID = 2080331) Radio
21 Silverstar; Superla - Cresa; (ID = 2080332) Radio 21 Silverstar; Superla - Cresa; (ID = 2080333) Radio
21 Silverstar; Superla - Cresa; (ID = 2080334) Radio 21 Silverstar; Superla - Cresa; (ID = 2080335) Radio
Use red slider bar for more.

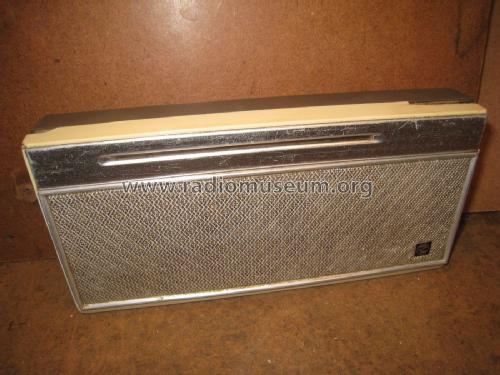

21 Silverstar; Superla - Cresa; (ID = 2080328) Radio
Superla - Cresa;: 21 Silverstar [Radio] ID = 2080328 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 21 Silverstar, Superla - Cresa; Modena

Country:  Italy
Manufacturer / Brand:  Superla - Cresa; Modena
alternative name

Cresa Radio; Modena
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: SFT323 SFT323 SFT307 SFT307 SFT307 SFT353 SFT352
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: 21 Silverstar - Superla - Cresa; Modena
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 205 x 97 x 32 mm / 8.1 x 3.8 x 1.3 inch
Notes

SUPERLA RADIO MW/OM mod. 21 SILVERSTAR - controllo volume - frequency range: 540/1600 KHz - 7 transistor / 2 diodi al germanio - uscita per cuffia.

Made in ITALY.

Net weight (2.2 lb = 1 kg) 0.350 kg / 0 lb 12.3 oz (0.771 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.



All listed radios etc. from Superla - Cresa; Modena
Here you find 118 models, 63 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
