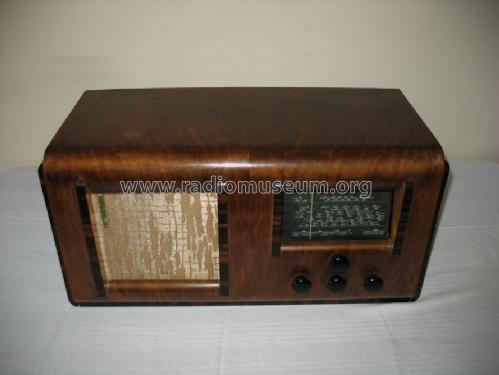

Superla - Cresa;: 57 [Radio] ID = 987973 890x668
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Cresa Radio; Modena | ||||
|---|---|---|---|---|---|
| Year: 1936/1937 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A7 78 75 42 80 |
| Main principle | Superheterodyne (common); ZF/IF 450 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110 - 220 volt Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 26 cm = 10.2 inch |
| Power out | |
| from Radiomuseum.org | Model: 57 - Superla - Cresa; Modena |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 600 x 350 x 280 mm / 23.6 x 13.8 x 11 inch |
| Notes | Questo modello è identico al modello Superla 56 come riferimento schema elettrico. |
| Net weight (2.2 lb = 1 kg) | 8.7 kg / 19 lb 2.6 oz (19.163 lb) |
| Source of data | Antique Radio Magazine - Italy, Club Antique Radio Magazine |
Model page created by Antonio Siciliano. See "Data change" for further contributors.
