Sølvsuper - Soelvsuper 9 9-51

Sølvsuper - Soelvsuper 9 9-51; Tandberg Radio; Oslo (ID = 56398) Radio

Sølvsuper - Soelvsuper 9 9-51; Tandberg Radio; Oslo (ID = 2084963) Radio

Sølvsuper - Soelvsuper 9 9-51; Tandberg Radio; Oslo (ID = 2084964) Radio
Sølvsuper - Soelvsuper 9 9-51; Tandberg Radio; Oslo (ID = 55041) Radio Sølvsuper - Soelvsuper 9 9-51; Tandberg Radio; Oslo (ID = 2010243) Radio
Sølvsuper - Soelvsuper 9 9-51; Tandberg Radio; Oslo (ID = 2010244) Radio Sølvsuper - Soelvsuper 9 9-51; Tandberg Radio; Oslo (ID = 2316197) Radio
Use red slider bar for more.
Sølvsuper - Soelvsuper 9 9-51; Tandberg Radio; Oslo (ID = 55041) Radio

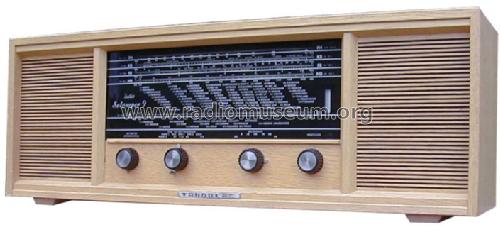

Tandberg Radio; Oslo: Sølvsuper - Soelvsuper 9 9-51 [Radio] ID = 55041 705x320
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sølvsuper - Soelvsuper 9 9-51, Tandberg Radio; Oslo

Country:  Norway
Manufacturer / Brand:  Tandberg Radio; Oslo
Year: 1965–1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Semiconductors (the count is only for transistors) 1: SE1001
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 130; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Sølvsuper - Soelvsuper 9 9-51 - Tandberg Radio; Oslo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 690 x 250 x 190 mm / 27.2 x 9.8 x 7.5 inch
Notes

Transistorized pre-amplifier for FM.

Technically the same as Tandberg Sølvsuper 9-50, but with two speakers.

Price in first year of sale 750.00 NOK
Mentioned in Radio TV Bladet, Mai 1965
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) -- Original prospect or advert

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Tandberg Radio; Oslo
Here you find 201 models, 172 with images and 106 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
