• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1983/1984

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 155207

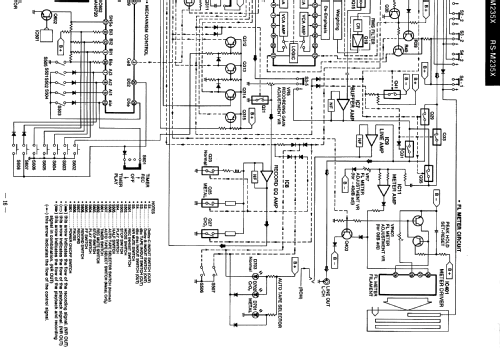

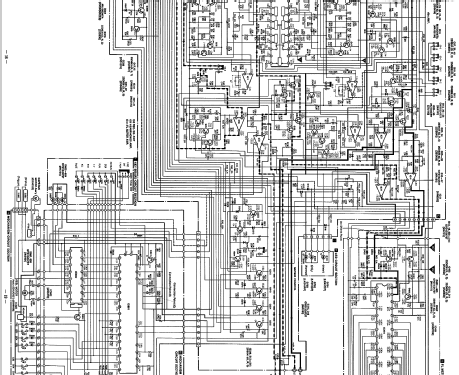

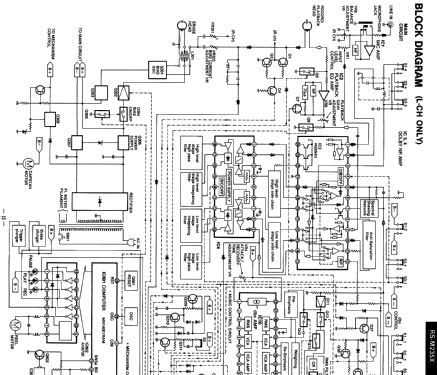

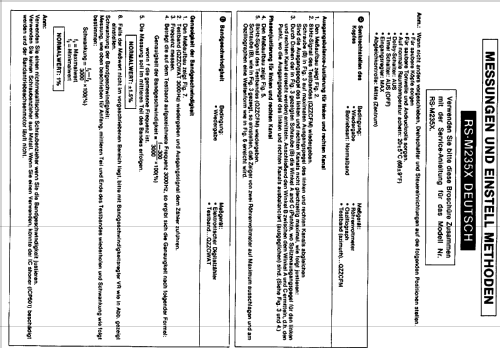

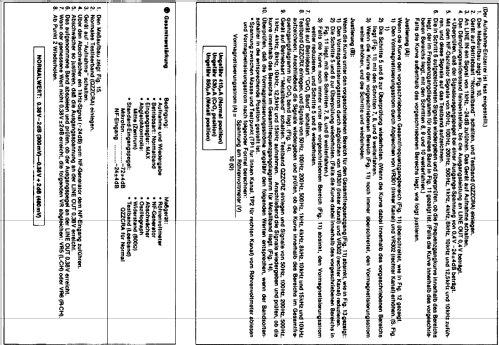

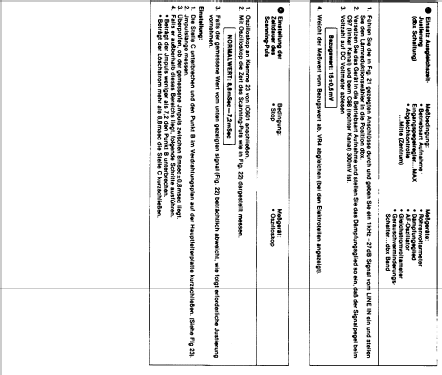

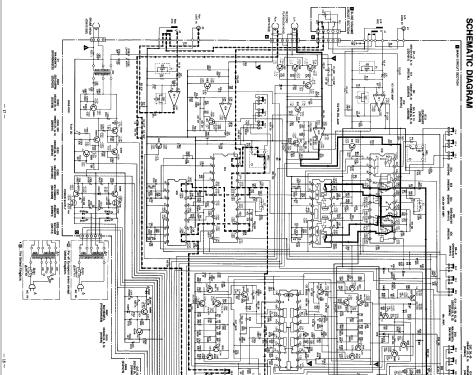

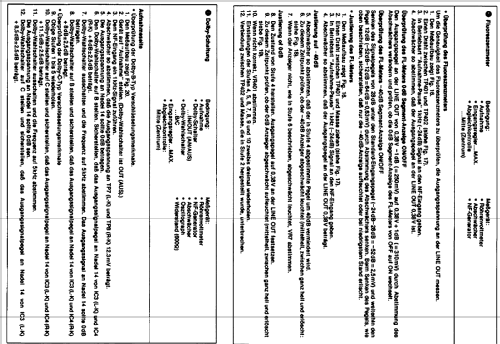

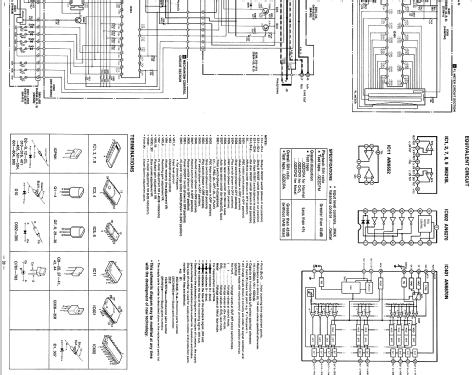

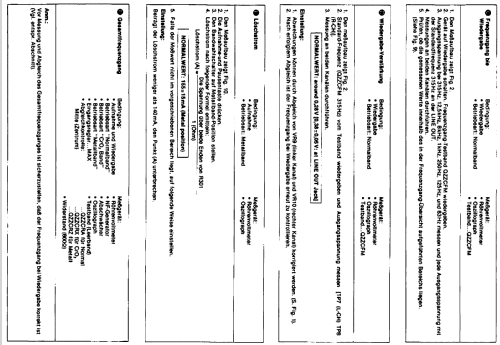

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 62

• Semiconductors
• 2SA921 2SD636 2SK246 2SD661 2SB641 2SD1225 2SD638 2SD1265 2SB941 M5218 M5220 NE654 NE652 AN6552 AN6270

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

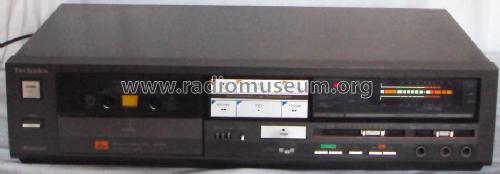

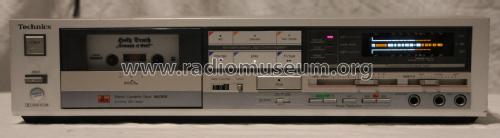

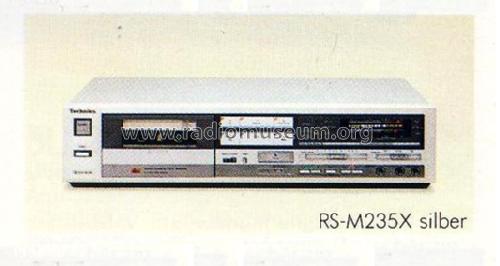

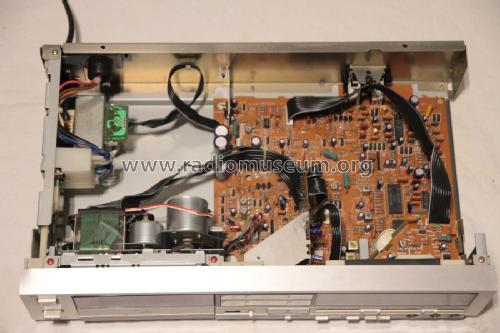

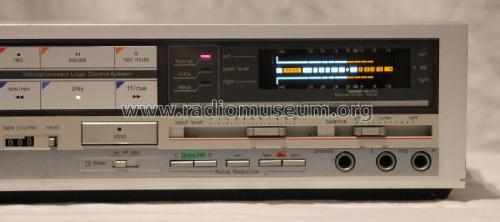

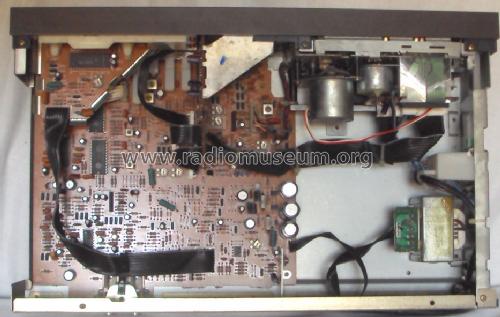

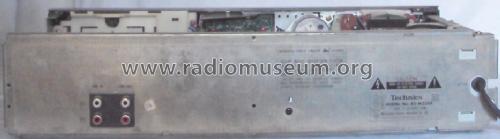

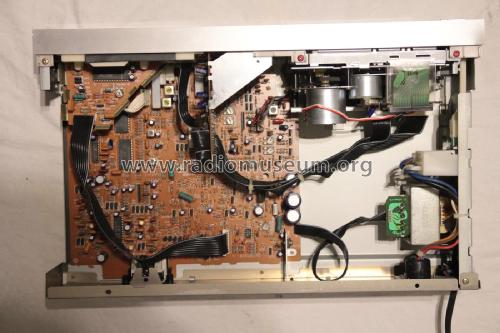

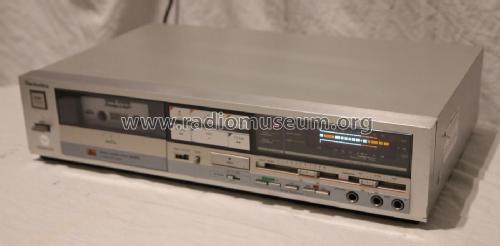

• Model: Stereo Cassette Deck RS-M235X - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 97 x 260 mm / 16.9 x 3.8 x 10.2 inch

• Notes

• Frontloading 2-Head Stereo Cassette Deck with Dolby B + C, DBX Type II and Metal Tape Capability.
  3-Digit Mechanical Counter, Digital Peak-Reading Meters, Multi Color Peak-Reading Meters, Peak Hold.

  Type: 2-head, single compact cassette deck
  Track System: 4-track, 2-channel stereo
  Tape Speed: 4.8 cm/s
  Heads: 1 x record/playback, 1 x erase
  Motor: 1 x reel, 1 x capstan
  Tape Type: type I, CrO₂, Metal
  Noise Reduction: B, C, DBX
  Frequency Response: 20 Hz to 20 kHz  (Metal tape)
  Signal to Noise Ratio: 92 dB  (DBX)
  Wow and Flutter: 0.045 %
  Input: 60 mV (line), 0.25 mV (mic)
  Output: 0.4 V (line)

  Stereo microphone input. Phones output.
  62 Transistors, 14 ICs 31 Diodes and 5 Rectifier Diodes. Listed one per type and not all.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 270.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
