Tefadyn 150W/III

Tefadyn 150W/III; Tefag; Telephon (ID = 47246) Radio

Tefadyn 150W/III; Tefag; Telephon (ID = 47249) Radio

Tefadyn 150W/III; Tefag; Telephon (ID = 47251) Radio

Tefadyn 150W/III; Tefag; Telephon (ID = 47254) Radio

Tefadyn 150W/III; Tefag; Telephon (ID = 47256) Radio

Tefadyn 150W/III; Tefag; Telephon (ID = 47259) Radio

Tefadyn 150W/III; Tefag; Telephon (ID = 7143) Radio

Tefadyn 150W/III; Tefag; Telephon (ID = 1092641) Radio

Tefadyn 150W/III; Tefag; Telephon (ID = 1582539) Radio
Tefadyn 150W/III; Tefag; Telephon (ID = 509038) Radio Tefadyn 150W/III; Tefag; Telephon (ID = 236494) Radio
Tefadyn 150W/III; Tefag; Telephon (ID = 236493) Radio Tefadyn 150W/III; Tefag; Telephon (ID = 236492) Radio
Tefadyn 150W/III; Tefag; Telephon (ID = 3588) Radio Tefadyn 150W/III; Tefag; Telephon (ID = 1298715) Radio
Tefadyn 150W/III; Tefag; Telephon (ID = 1298716) Radio Tefadyn 150W/III; Tefag; Telephon (ID = 1298717) Radio
Use red slider bar for more.
Tefadyn 150W/III; Tefag; Telephon (ID = 509038) Radio

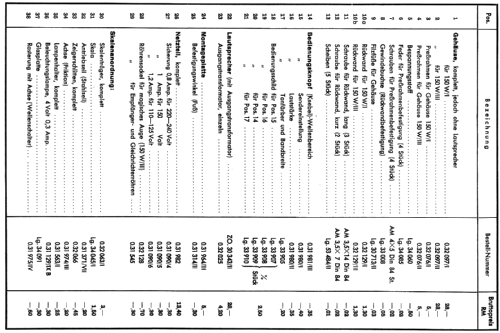

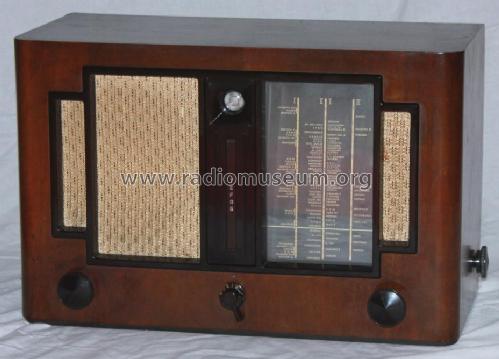

Tefag; Telephon: Tefadyn 150W/III [Radio] ID = 509038 933x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tefadyn 150W/III, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Tefadyn 150W/III - Tefag; Telephon
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 310 x 260 mm / 21.3 x 12.2 x 10.2 inch
Notes 150W-I = Wechselstrom Normalausführung
150W-II = Wechselstrom Sonderausführung mit Druckknopfwähler
150W-III= Wechselstrom Normalausführung mit magischem Auge
150W-IV = Wechselstrom Sonderausführungen mit Druckknopfwähler und mag. Auge

150A-I = Allstrom Normalausführung
150A-II = Allstrom Sonderausführung mit Druckknopfwähler

Variable Bandbreite.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 217.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.
