Tefadyn 200 ET38A
Use red slider bar for more.

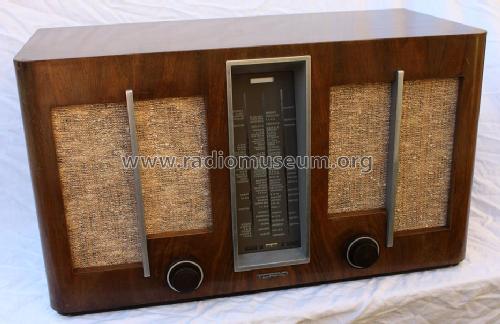

Tefag; Telephon: Tefadyn 200 ET38A [Radio] ID = 667625 933x605
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Telephon-Fabrik, AG vorm. J. Berliner | ||||
|---|---|---|---|---|---|
| Year: 1938 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: CK1 CF3 CBC1 CL4 CY1 U920 |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 110; 125; 150; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Tefadyn 200 ET38A - Tefag; Telephon |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 540 x 310 x 270 mm / 21.3 x 12.2 x 10.6 inch |
| Notes | Feldstärkeanzeige, variable Bandbreite. |
| Net weight (2.2 lb = 1 kg) | 14.5 kg / 31 lb 15 oz (31.938 lb) |
Model page created by Jörg Kulbe. See "Data change" for further contributors.
