Tefadyn 268GW

Tefadyn 268GW; Tefag; Telephon (ID = 46325) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46326) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46327) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46328) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46329) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46334) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46335) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46331) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46332) Radio

Tefadyn 268GW; Tefag; Telephon (ID = 46333) Radio
Tefadyn 268GW; Tefag; Telephon (ID = 1580304) Radio Tefadyn 268GW; Tefag; Telephon (ID = 32555) Radio

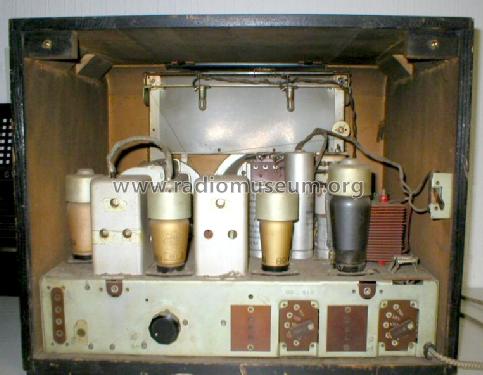

Tefadyn 268GW; Tefag; Telephon (ID = 32556) Radio Tefadyn 268GW; Tefag; Telephon (ID = 32557) Radio
Use red slider bar for more.
Tefadyn 268GW; Tefag; Telephon (ID = 1580304) Radio
Tefag; Telephon: Tefadyn 268GW [Radio] ID = 1580304 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tefadyn 268GW, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF3 CBC1 CL4 CY1 U920
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Tefadyn 268GW - Tefag; Telephon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 375 x 365 mm / 17.9 x 14.8 x 14.4 inch
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 284.00 RM
Collectors' prices
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
Here you find 254 models, 168 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
