Tefadyn 308W

Tefadyn 308W; Tefag; Telephon (ID = 45963) Radio

Tefadyn 308W; Tefag; Telephon (ID = 45964) Radio

Tefadyn 308W; Tefag; Telephon (ID = 45965) Radio

Tefadyn 308W; Tefag; Telephon (ID = 1093215) Radio

Tefadyn 308W; Tefag; Telephon (ID = 45966) Radio

Tefadyn 308W; Tefag; Telephon (ID = 45967) Radio

Tefadyn 308W; Tefag; Telephon (ID = 45969) Radio

Tefadyn 308W; Tefag; Telephon (ID = 45970) Radio

Tefadyn 308W; Tefag; Telephon (ID = 45971) Radio

Tefadyn 308W; Tefag; Telephon (ID = 45972) Radio
Tefadyn 308W; Tefag; Telephon (ID = 1067972) Radio Tefadyn 308W; Tefag; Telephon (ID = 61506) Radio
Tefadyn 308W; Tefag; Telephon (ID = 367954) Radio Tefadyn 308W; Tefag; Telephon (ID = 368658) Radio
Tefadyn 308W; Tefag; Telephon (ID = 1067974) Radio Tefadyn 308W; Tefag; Telephon (ID = 1067975) Radio
Tefadyn 308W; Tefag; Telephon (ID = 1067977) Radio Tefadyn 308W; Tefag; Telephon (ID = 1067978) Radio
Tefadyn 308W; Tefag; Telephon (ID = 1067979) Radio Tefadyn 308W; Tefag; Telephon (ID = 1067981) Radio
Use red slider bar for more.
Tefadyn 308W; Tefag; Telephon (ID = 1067972) Radio
Tefag; Telephon: Tefadyn 308W [Radio] ID = 1067972 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tefadyn 308W, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Tefadyn 308W - Tefag; Telephon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 456 x 376 x 366 mm / 18 x 14.8 x 14.4 inch
Notes Feldstärkeanzeige, Bandbreitenreglung. (auch Lorenz)
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 308.00 RM
Collectors' prices
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

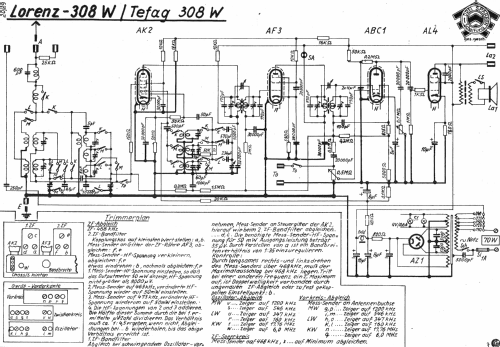

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Katalog Radio-Zentrale Prohaska 1928
