Atlantic 183 BT1514 G1

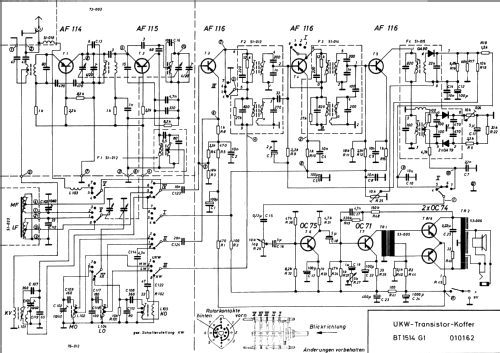

Atlantic 183 BT1514 G1; Tefi-Apparatebau; (ID = 750453) Radio

Atlantic 183 BT1514 G1; Tefi-Apparatebau; (ID = 750394) Radio

Atlantic 183 BT1514 G1; Tefi-Apparatebau; (ID = 750390) Radio

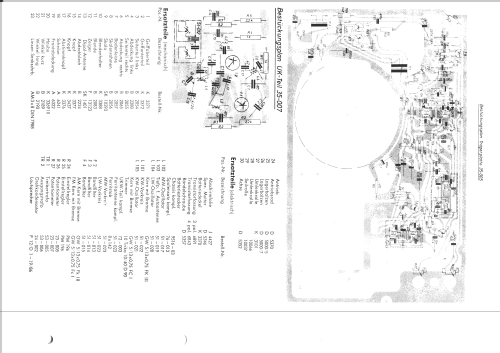

Atlantic 183 BT1514 G1; Tefi-Apparatebau; (ID = 750392) Radio
Use red slider bar for more.
Atlantic 183 BT1514 G1; Tefi-Apparatebau; (ID = 750453) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC75 OC71 OC74 OC74 OA79 OA79 OA90
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 0.95 W (unknown quality)
from Radiomuseum.org Model: Atlantic 183 BT1514 G1 - Tefi-Apparatebau; Porz bei
Material Special material, described in the notes.
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 240 x 110 mm / 11.8 x 9.4 x 4.3 inch
Notes Gehäuse aus Metall + Kunststoff, 3 Germanium-Dioden.
Produktion bei Tonfunk, siehe auch Altantik 62.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data - - Data from my own collection

Model page created by Felix Kreitlow. See "Data change" for further contributors.
