Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4

Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 609867) TV Radio

Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 609868) TV Radio

Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 609870) TV Radio

Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 609871) TV Radio

Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 609872) TV Radio

Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 2117302) TV Radio
Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 316625) TV Radio Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 316626) TV Radio
Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 316627) TV Radio Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 316628) TV Radio
Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 321869) TV Radio Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 755217) TV Radio
Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 755218) TV Radio Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 755219) TV Radio
Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 755220) TV Radio
Use red slider bar for more.
Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4; Tefi-Apparatebau; (ID = 316625) TV Radio
Tefi-Apparatebau;: Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4 [TV Radio] ID = 316625 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4, Tefi-Apparatebau; Porz bei Köln

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1960–1962 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 18: PCC88 PCF80 PC86 PC86 ECC81 ECH81 EAA91 PCF80 EBF89 EF80 PCL84 EF80 EF80 EF183 PCL82 PL36 PY88 23SP4
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Capitano de luxe SK463 FW4117 TF4 + FW4217 TF4 - Tefi-Apparatebau; Porz bei
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 685 x 1015 x 500 mm / 27 x 40 x 19.7 inch

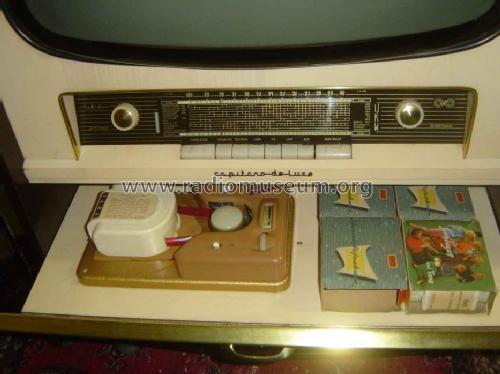

Notes Fernsehkombination mit UKW-Rundfunkempfänger und Schallbandspieler KC1. Ausf. AF 20210 mit Fernsehband I+III (Kanal 2-11 + 2 Res.), UHF vorbereitet. Ausf. AG 20209 mit Fernsehband I+III (Kanal 2-11 + 2 Res.) und UHF (Kanal 14-53). Zahl der Röhrenfunktionen: AF 20210 "37", AG 20209 "39". 23" Bildröhre. 23SP4
Dioden: OA70 3xOA79 OA261
UKW-Empfänger: ECC85 ECH81 EBF89 EM84
Source of data -- Original-techn. papers.
Mentioned in -- Original prospect or advert

Model page created by Ilja Liebisch. See "Data change" for further contributors.
