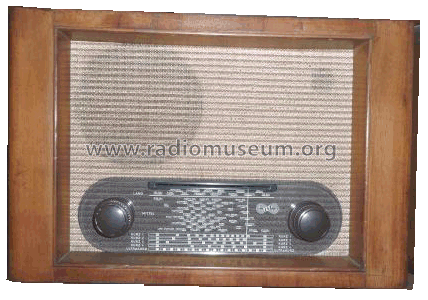

Super-Ultra TRS46W (TR5 46W) ohne UM4

Tefi-Apparatebau; Porz bei Köln

  • Year
  • 1950/1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 17248

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Ready for FM, has Broadcast, Long Wave, several Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Super-Ultra TRS46W [ohne UM4] - Tefi-Apparatebau; Porz bei
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 550 x 350 x 240 mm / 21.7 x 13.8 x 9.4 inch
  • Notes
  • Tefi Super Ultra - TRS46W.
    Permeabilitätsabstimmung, vier KW-Bereiche; Wechselstromausführung mit Autotrafo!
    Auch mit UM4.
  • Price in first year of sale
  • 378.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Picture reference
  • Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
