Tomis S 722 TE

Tomis S 722 TE; Tehnoton S.A.; Iasi (ID = 478172) Radio Tomis S 722 TE; Tehnoton S.A.; Iasi (ID = 478173) Radio

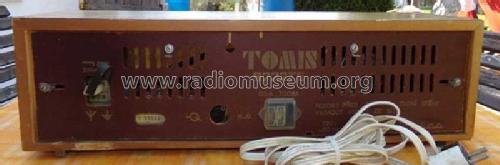

Tomis S 722 TE; Tehnoton S.A.; Iasi (ID = 1923203) Radio
Use red slider bar for more.
Tomis S 722 TE; Tehnoton S.A.; Iasi (ID = 478172) Radio
Tehnoton S.A.; Iasi: Tomis S 722 TE [Radio] ID = 478172 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tomis S 722 TE, Tehnoton S.A.; Iasi:
gefunden in einem tschechischen AV-Laden.
Country:  Romania
Manufacturer / Brand:  Tehnoton S.A.; Iasi
Year: 1977 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Model: Tomis S 722 TE - Tehnoton S.A.; Iasi
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 160 x 160 mm / 21.3 x 6.3 x 6.3 inch
Notes Gerät wurde speziell für den Export nach Osteuropa produziert. UKW- Bereich nur OIRT 66..73,5 MHz (für DDR 88...100 MHz). Transistoren: 2× BF215, 3× BF214, BC108C, 2× EFD322D, AC180/AC181 Endstufegepaart, 1× AC180 im Netzteil.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
