Melodie W387

Melodie W387; TeKaDe TKD, (ID = 105787) Radio

Melodie W387; TeKaDe TKD, (ID = 2317929) Radio
Melodie W387; TeKaDe TKD, (ID = 506536) Radio Melodie W387; TeKaDe TKD, (ID = 506539) Radio
Melodie W387; TeKaDe TKD, (ID = 506537) Radio Melodie W387; TeKaDe TKD, (ID = 506538) Radio
Melodie W387; TeKaDe TKD, (ID = 1960806) Radio
Use red slider bar for more.
Melodie W387; TeKaDe TKD, (ID = 506536) Radio

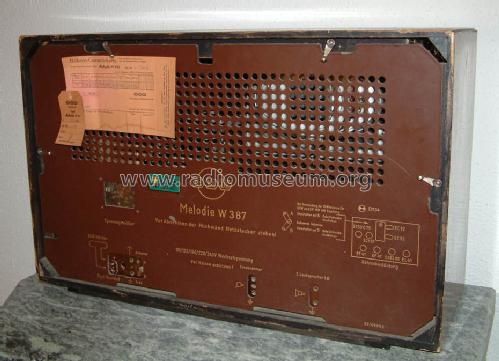

TeKaDe TKD,: Melodie W387 [Radio] ID = 506536 932x673
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodie W387, TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

Country:  Germany
Manufacturer / Brand:  TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
alternative name

Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
Brand
KD
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF41 EM34 EF41 EABC80 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Melodie W387 - TeKaDe TKD, Süddeutsche
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 385 x 285 mm / 23.6 x 15.2 x 11.2 inch
Notes

Zweistufige Bandbreitenregelung; drehbare Ferritantennte.

Siehe auch: Rhapsodie W389.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Mentioned in Funkschau (Schaltungssammlung 1953/54 Nr. 40)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
