Super W39KW

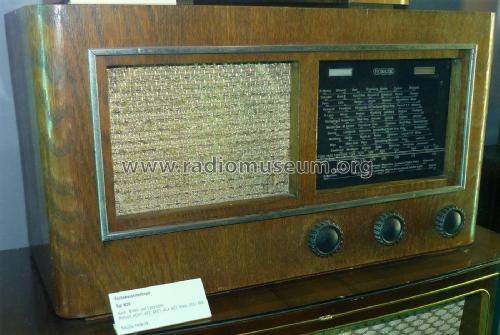

Super W39KW; TeKaDe TKD, (ID = 7194) Radio

Super W39KW; TeKaDe TKD, (ID = 11015) Radio
Super W39KW; TeKaDe TKD, (ID = 81950) Radio Super W39KW; TeKaDe TKD, (ID = 75387) Radio
Super W39KW; TeKaDe TKD, (ID = 490214) Radio Super W39KW; TeKaDe TKD, (ID = 1961295) Radio
Super W39KW; TeKaDe TKD, (ID = 1961303) Radio Super W39KW; TeKaDe TKD, (ID = 1961304) Radio
Use red slider bar for more.
Super W39KW; TeKaDe TKD, (ID = 81950) Radio
TeKaDe TKD,: Super W39KW [Radio] ID = 81950 640x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super W39KW, TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

Country:  Germany
Manufacturer / Brand:  TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
alternative name

Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
Brand
KD
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super W39KW - TeKaDe TKD, Süddeutsche
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 310 x 277 mm / 22 x 12.2 x 10.9 inch
Notes Feldstärkeanzeige, variable Bandbreite.
Net weight (2.2 lb = 1 kg) 14.2 kg / 31 lb 4.4 oz (31.278 lb)
Price in first year of sale 235.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
