Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner

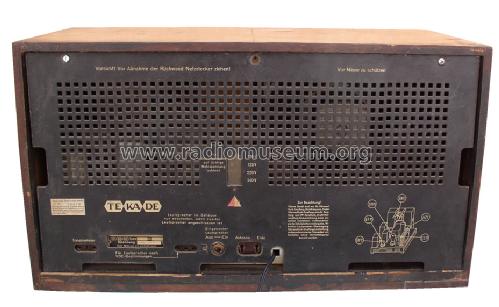

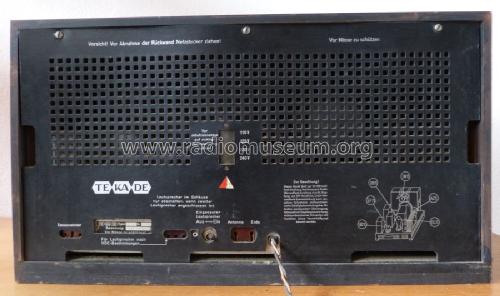

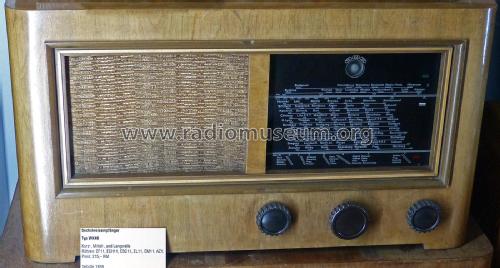

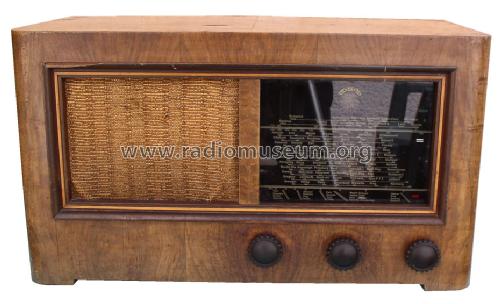

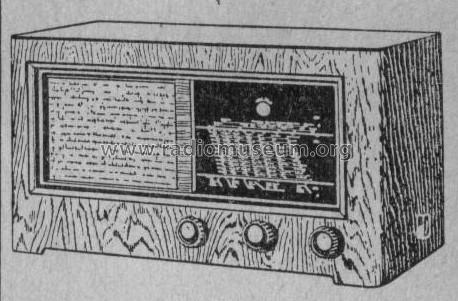

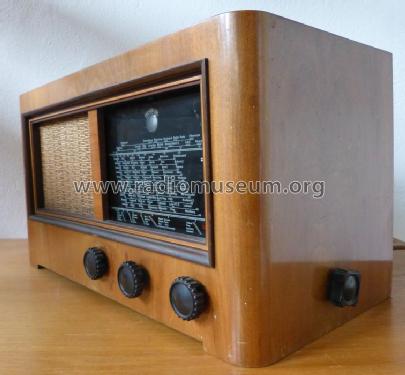

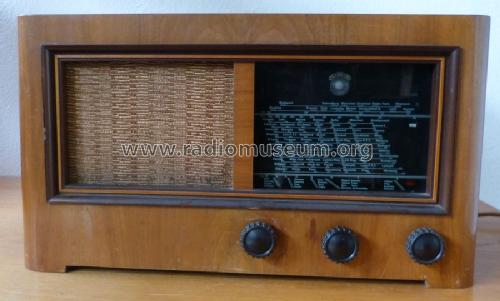

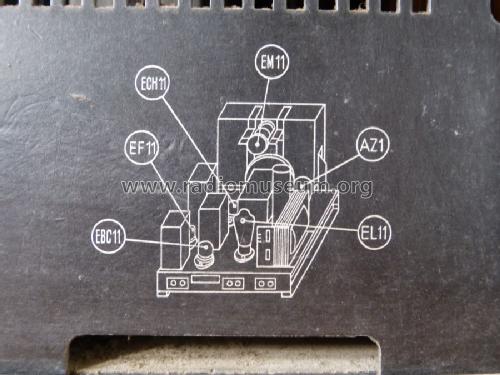

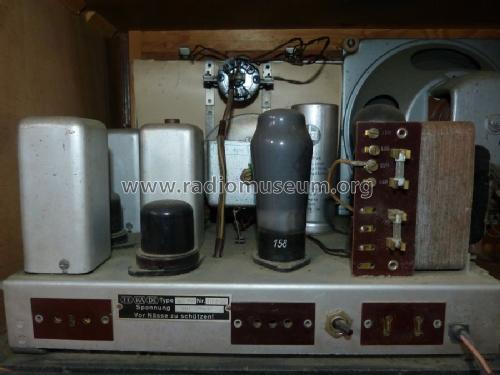

Valves / Tubes 6: ECH11 EF11 EBC11 EL11 EM11 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)

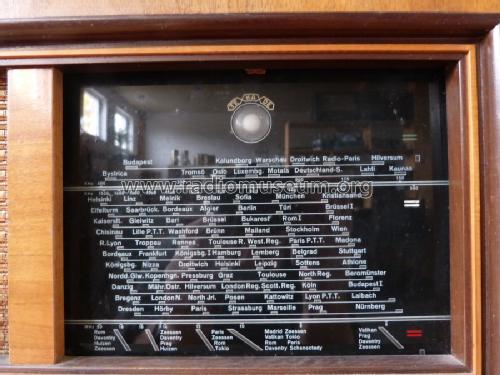

Wave bands Broadcast, Long Wave and Short Wave.
Details

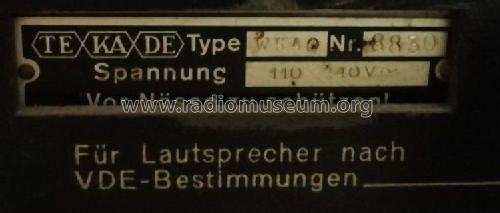

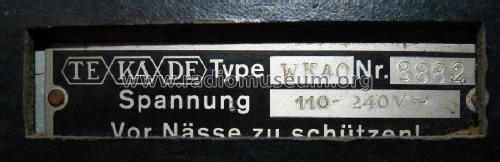

Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: WK40 - TeKaDe TKD, Süddeutsche
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 300 x 300 mm / 22 x 11.8 x 11.8 inch
Notes Variable Bandbreite.
Net weight (2.2 lb = 1 kg) 13.2 kg / 29 lb 1.2 oz (29.075 lb)
Price in first year of sale 215.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
