Weltbild Junior 5T43

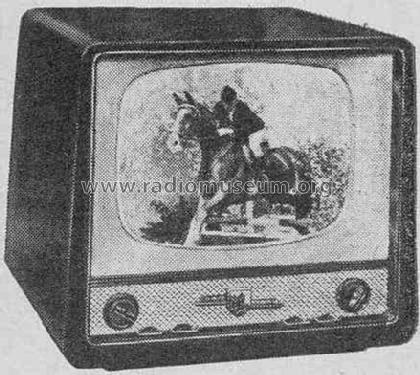

Weltbild Junior 5T43; TeKaDe TKD, (ID = 1960859) Television Weltbild Junior 5T43; TeKaDe TKD, (ID = 314570) Television
Weltbild Junior 5T43; TeKaDe TKD, (ID = 1959995) Television
Use red slider bar for more.

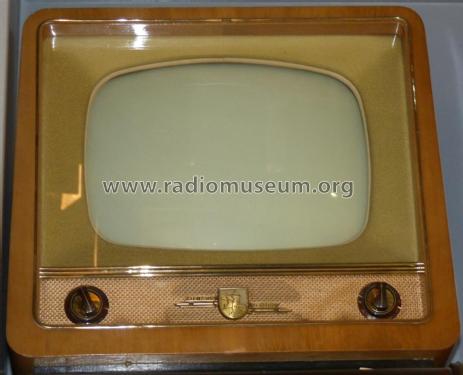

Weltbild Junior 5T43; TeKaDe TKD, (ID = 1960859) Television
TeKaDe TKD,: Weltbild Junior 5T43 [Television] ID = 1960859 1400x1132
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltbild Junior 5T43, TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg:
Gerät steht im Museum Industriekultur, Nürnberg.

Country:  Germany
Manufacturer / Brand:  TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
alternative name

Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
Brand
KD
Year: 1956/1957 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: PCC84 PCF80 EF80 EF80 EF80 EF80 PCF80 PCL82 PL81 PY81 EY86 ECC82 EF80 PABC80 PL82 AW43-20
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Weltbild Junior 5T43 - TeKaDe TKD, Süddeutsche
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 480 x 480 mm / 21.3 x 18.9 x 18.9 inch
Notes VHF-Band I & III.
Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
Price in first year of sale 835.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
