Terta 1004/2

Terta 1004/2; Telefongyar, Terta (ID = 696465) Radio Terta 1004/2; Telefongyar, Terta (ID = 696467) Radio
Terta 1004/2; Telefongyar, Terta (ID = 696326) Radio Terta 1004/2; Telefongyar, Terta (ID = 696328) Radio
Terta 1004/2; Telefongyar, Terta (ID = 696331) Radio Terta 1004/2; Telefongyar, Terta (ID = 696332) Radio
Terta 1004/2; Telefongyar, Terta (ID = 696333) Radio Terta 1004/2; Telefongyar, Terta (ID = 696463) Radio
Use red slider bar for more.
Terta 1004/2; Telefongyar, Terta (ID = 696465) Radio
Telefongyar, Terta: Terta 1004/2 [Radio] ID = 696465 870x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Terta 1004/2, Telefongyar, Terta (TRT); Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Telefongyar, Terta (TRT); Budapest
Brand

Terta, TRT
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N219 2N218 2N218 П14 П14 2P6 2P6
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt

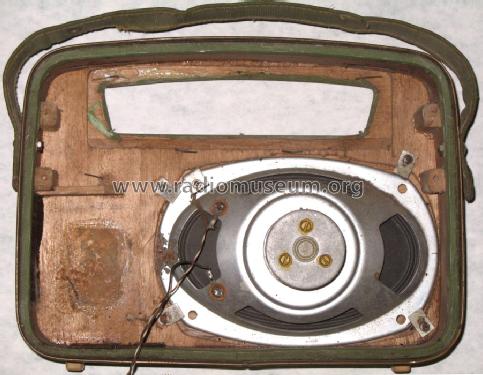

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Terta 1004/2 - Telefongyar, Terta TRT;
Material Leather / canvas / plastic - over other material

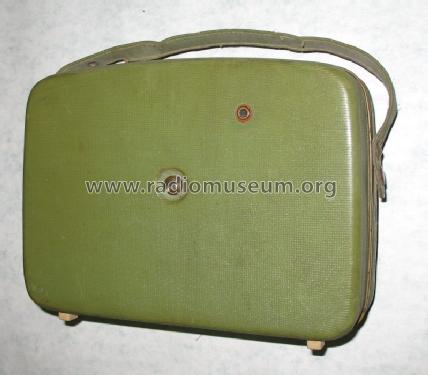

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 178 x 79 mm / 9.4 x 7 x 3.1 inch
Notes Speaker 15,5×10 cm.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data Radio es Televizio Vevö Keszülekek, 1958-59

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
