T-121-W

T-121-W; Telefunken; Wien (ID = 410630) Radio
T-121-W; Telefunken; Wien (ID = 54063) Radio T-121-W; Telefunken; Wien (ID = 315180) Radio
T-121-W; Telefunken; Wien (ID = 315181) Radio T-121-W; Telefunken; Wien (ID = 815992) Radio
T-121-W; Telefunken; Wien (ID = 1382355) Radio T-121-W; Telefunken; Wien (ID = 1862203) Radio
T-121-W; Telefunken; Wien (ID = 1862204) Radio T-121-W; Telefunken; Wien (ID = 1862205) Radio
T-121-W; Telefunken; Wien (ID = 1862206) Radio T-121-W; Telefunken; Wien (ID = 1862207) Radio
Use red slider bar for more.
T-121-W; Telefunken; Wien (ID = 54063) Radio
Telefunken; Wien: T-121-W [Radio] ID = 54063 790x522
Select picture or schematic to display from thumbnails on the right and click for download.
For model T-121-W, Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN904 RE134 RGN354
Main principle TRF without regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 117; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: T-121-W - Telefunken; Wien
Material Metal case
Notes Preis in Österreich (1931) ATS 165.-
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

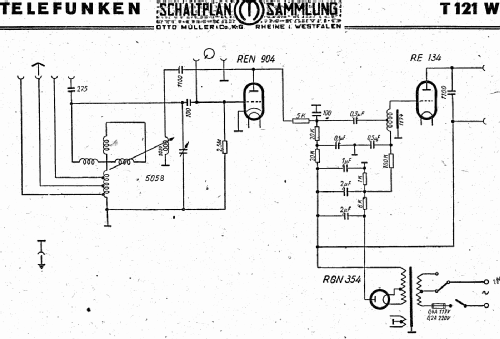

Literature/Schematics (1) -- Schematic
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
