• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1945–1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4140

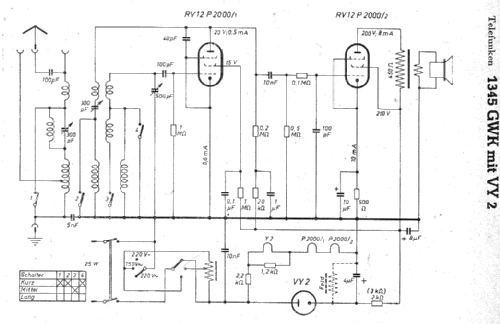

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RV12P2000 RV12P2000 VY2

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 150; 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

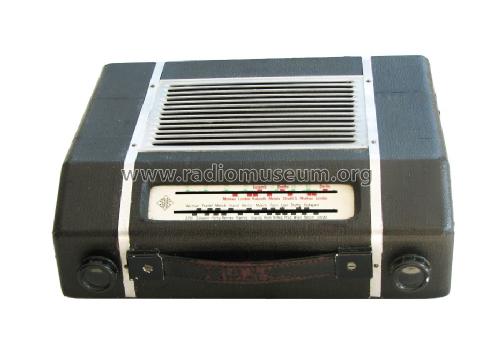

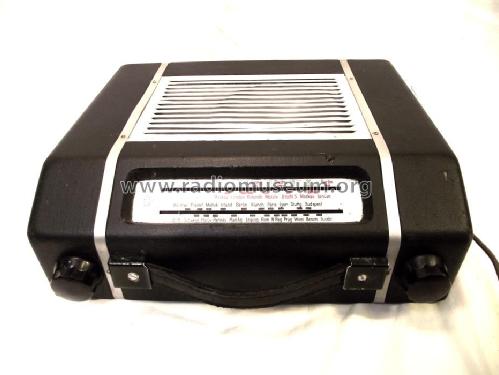

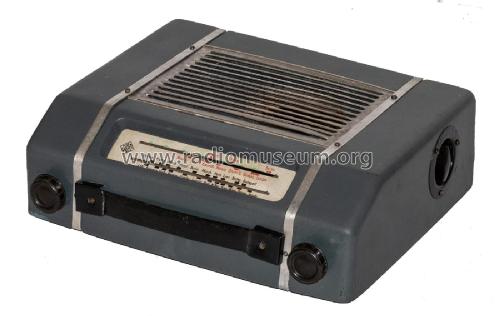

• Model: 1345GWK [VY2] - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 335 x 112 x 270 mm / 13.2 x 4.4 x 10.6 inch

• Notes
• Schreibm.;1. von T. in Berlin! [1-105] Siehe auch 1345GWK mit Trockengleichrichter.

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funkgeschichte der GFGF (8646)
