1S65WK

1S65WK; Telefunken (ID = 20503) Radio

1S65WK; Telefunken (ID = 20504) Radio

1S65WK; Telefunken (ID = 11024) Radio

1S65WK; Telefunken (ID = 7466) Radio

1S65WK; Telefunken (ID = 278992) Radio
1S65WK; Telefunken (ID = 523654) Radio 1S65WK; Telefunken (ID = 523655) Radio
1S65WK; Telefunken (ID = 99309) Radio 1S65WK; Telefunken (ID = 99308) Radio
1S65WK; Telefunken (ID = 523656) Radio 1S65WK; Telefunken (ID = 791270) Radio
1S65WK; Telefunken (ID = 791271) Radio 1S65WK; Telefunken (ID = 791272) Radio
1S65WK; Telefunken (ID = 791273) Radio 1S65WK; Telefunken (ID = 791274) Radio
Use red slider bar for more.
1S65WK; Telefunken (ID = 523654) Radio

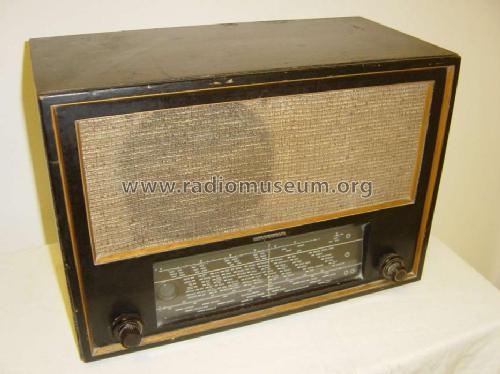

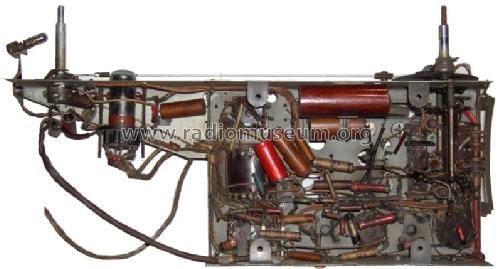

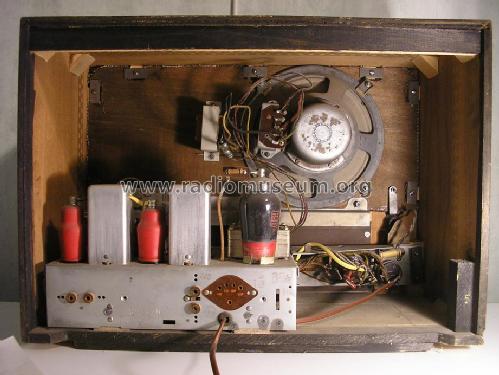

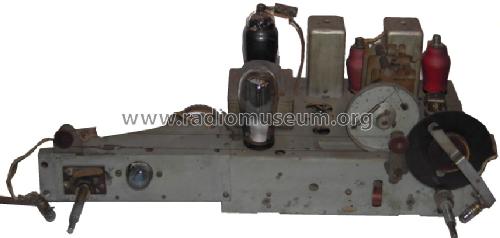

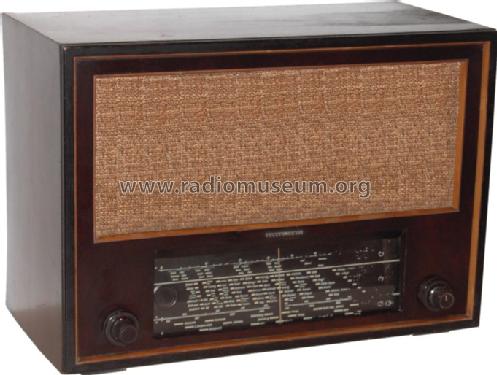

Telefunken: 1S65WK [Radio] ID = 523654 879x668
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1S65WK, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1942–1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 ECF1 EBL1 AZ1 EM4
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 1S65WK - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Export (1S64+Mag.Auge)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
