241U

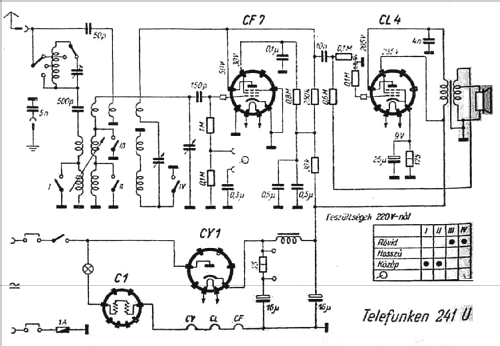

241U; Telefunken; Budapest (ID = 137874) Radio

241U; Telefunken; Budapest (ID = 2639101) Radio
241U; Telefunken; Budapest (ID = 133237) Radio 241U; Telefunken; Budapest (ID = 474468) Radio
241U; Telefunken; Budapest (ID = 2223064) Radio
Use red slider bar for more.
241U; Telefunken; Budapest (ID = 133237) Radio
Telefunken; Budapest: 241U [Radio] ID = 133237 224x188
Select picture or schematic to display from thumbnails on the right and click for download.
For model 241U, Telefunken; Budapest

Country:  Hungary
Manufacturer / Brand:  Telefunken; Budapest
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CF7 CL4 CY1 C1
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker
Power out
from Radiomuseum.org Model: 241U - Telefunken; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 330 x 230 mm / 16.9 x 13 x 9.1 inch
Price in first year of sale 192.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
