• Year
  • 1942–1944
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151535

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 100-135; 200-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 2B54GWK - Telefunken; Budapest
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 260 x 210 x 170 mm / 10.2 x 8.3 x 6.7 inch
  • Notes
  • Dial lamp: 6V/0,2A.

  • Net weight (2.2 lb = 1 kg)
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • Mentioned in

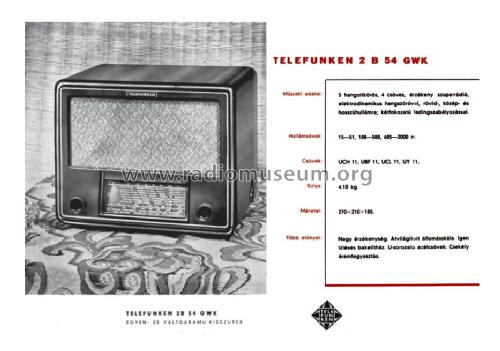

  • -- Original prospect or advert
