Year: 1942/1943 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
Valves / Tubes | 5: ECH3 EBF2 ECL11 AZ1 EM4 |
---|
Main principle | Superheterodyne (common); ZF/IF 472 kHz |
---|---|
Tuned circuits | 6 AM circuit(s) |
Wave bands | Broadcast, Long Wave and Short Wave. |
Details | |
Power type and voltage | Alternating Current supply (AC) / 110; 120; 150; 220; 240 Volt |
Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch |
Power out | |

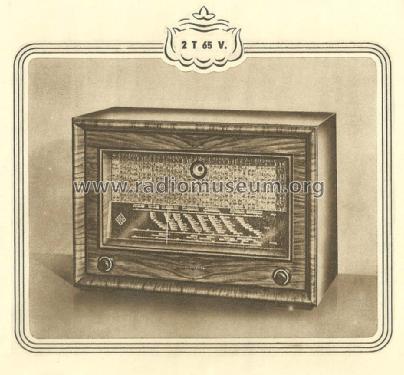

from Radiomuseum.org | Model: Középszuper 2T65V - Telefunken; Budapest |
Material | Wooden case |
Shape | Tablemodel, low profile (big size). |
Dimensions (WHD) | 553 x 370 x 242 mm / 21.8 x 14.6 x 9.5 inch |
Notes | Das Gerät wurde von Telefunken, Budapest hergestellt. Es ist spartanisch aufgebaut - das Chassis besteht aus Pertinax Platten. Zeitgleiche Telefunken Geräte ( z.B. 065WK) aus deutscher Produktion verwenden Röhren mit Europasockel. Die Schaltung des 2T65V ist ähnlich dem Modell 343VL von Siemens, Budapest aus dem Jahr 1942/43. |
Net weight (2.2 lb = 1 kg) | 11.5 kg / 25 lb 5.3 oz (25.33 lb) |
Price in first year of sale | 425.00 Pengö |
Source of data | -- Original prospect or advert |
Mentioned in | Rádiókészülékek Kapcsolásai 1936-56 (Telefunken Katálogus 1942-43) |
Model page created by Folkert Rothe. See "Data change" for further contributors.
